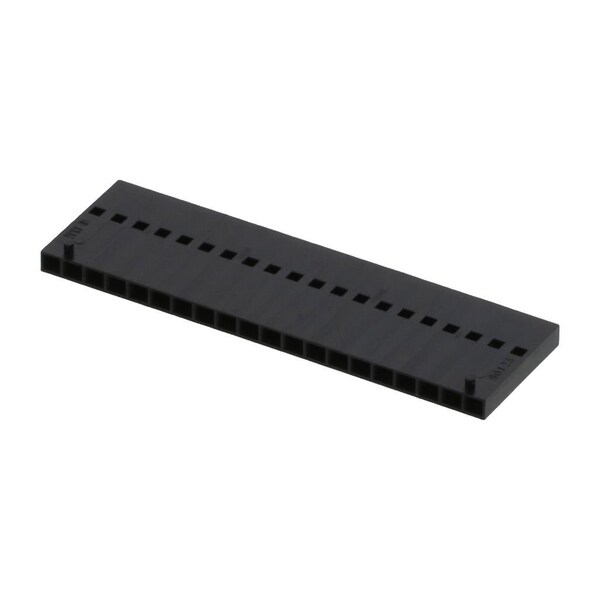

Board Connector, 20 Contact(S), 1 Row(S), Female, 0.1 Inch Pitch, Crimp Terminal, Locking, Black
| Color | Black |
|---|---|
| Application | Signal |
| Series | 90123 |
| Standards | UL E29179 |
| Max. Temp. | 105 deg C |
| Material | Polyphenylene Oxide |
| Hole Center to Center | 2.54 mm |
| Connector Type | Receptacle |
| Flammability Rating | UL 94V-1 |
| Number of Rows | 1 |
| Number of Contacts | 20 |
| Stackable | Yes |
| Circuits (maximum) | 20 |
| Material - Resin | PPO |
| Pitch - Mating Interface | 2.54 mm |
| Temperature Range - Operating | -55° to +105°C |
| Glow-Wire Capable | No |
| UL | E29179 |
| Product Name | C-Grid III |
| Flammability | 94 V to 1 |
| Package Quantity | 1 |
