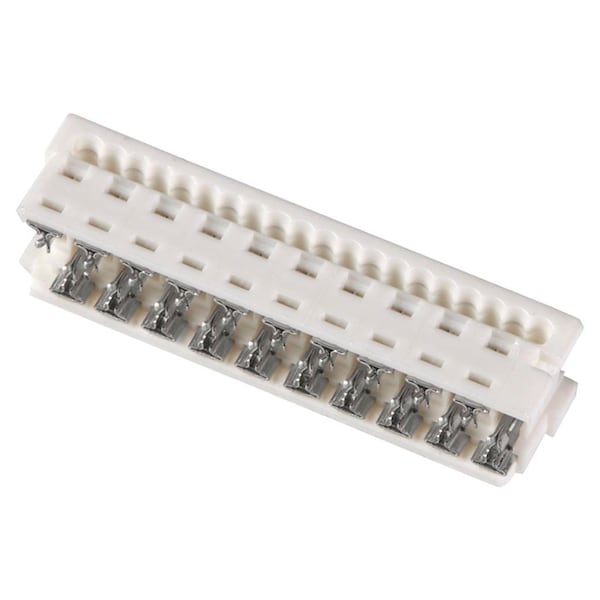

Conector de tarjeta, 20 contactos, 2 hileras, hembra, paso de 0.1 pulgadas, terminal IDC, ranura guía, color blanco.
| Color | White |
|---|---|
| Max. Single Wire Size | 26 AWG |
| Min. Single Wire Size | 28 AWG |
| Max. Voltage | 250 V |
| Series | 90327 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 1.27 mm |
| Material | Polyester |
| Terminal Type | IDT, Pierce |
| Max. Insulation Dia. | 1 mm |
| Max. Temp. | 105 deg C |
| Number of Contacts | 20 |
| Terminal Finish | Tin Plated |
| Current Rating | 1.2 A |
| Number of Rows | 2 |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Tin Plated |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Material - Resin | Polyester |
| Product Name | Picoflex |
| PCB Retention | None |
| Polarized to PCB | No |
| Stackable | No |
| Material - Plating Termination | Tin |
| Shrouded | Fully |
| Glow-Wire Capable | No |
| Pitch - Mating Interface | 1.27 mm |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Component Type | Housing |
| Circuits (Loaded) | 20 |
| Wire Insulation Diameter | 1 mm max. |
| Wire/Cable Type | Cable |
| Current - Maximum per Contact | 1.2 A |
| Material - Plating Mating | Tin |
| Flammability | 94 V to 0 |
| Gender | Receptacle |
| PCB Locator | No |
| Entry Angle | Vertical |
| Wire Size (AWG) | 26, 28 |
| Durability (mating cycles max) | 30 |
| CSA | LR19980 |
| Material - Metal | Phosphor Bronze |
| Package Quantity | 1 |
