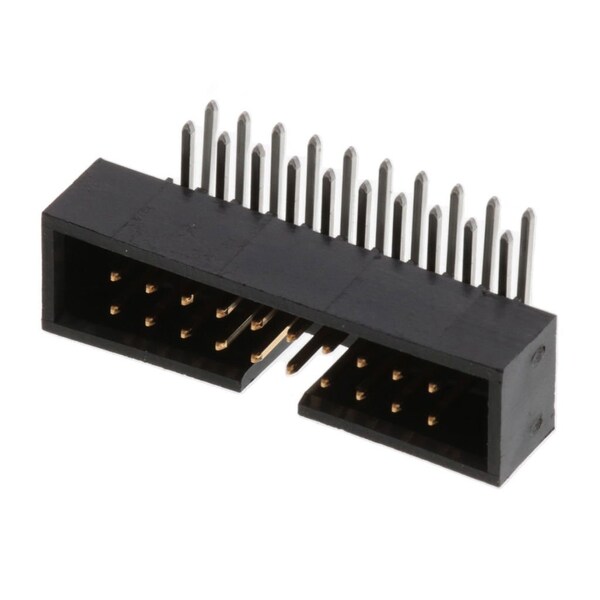

Board Connector, 20 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal
| Color | Black |
|---|---|
| Max. Voltage | 250 V DC |
| Application | Signal, Wire-to-Board |
| Series | 70247 |
| Standards | CSA Certified, UL E29179 |
| Material | Polyester |
| Terminal Type | Through Hole |
| Hole Center to Center | 2.54 mm |
| Max. Temp. | 235 deg C |
| Sub-Category | PCB Headers |
| Contact Plating Thickness | 0.127 µm |
| Number of Contacts | 20 |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Current Rating | 2.5 A |
| Component Type | PCB Header |
| Material - Resin | Polyester |
| Max-Cycle | 1 |
| Flammability | 94 V to 0 |
| Max-Temp | 235 |
| Material - Plating Mating | Gold |
| Product Name | C-Grid |
| Glow-Wire Capable | No |
| Material - Plating Termination | Tin |
| Plating min - Mating | 0.127 um |
| Lock to Mating Part | None |
| Max-Duration | 10 |
| First Mate / Last Break | No |
| Polarized to PCB | No |
| Stackable | No |
| Temperature Range - Operating | -55° to +120°C |
| PCB Locator | No |
| UL | E29179 |
| Guide to Mating Part | No |
| Polarized to Mating Part | Yes |
| Orientation | Right Angle |
| PC Tail Length | 2.54 mm |
| Circuits (Loaded) | 20 |
| CSA | LR19980 |
| Keying to Mating Part | None |
| Shrouded | Closed Ends |
| Pitch - Mating Interface | 2.54 mm |
| Breakaway | No |
| Current - Maximum per Contact | 2.5 A |
| Durability (mating cycles max) | 50 |
| Package Quantity | 1 |
