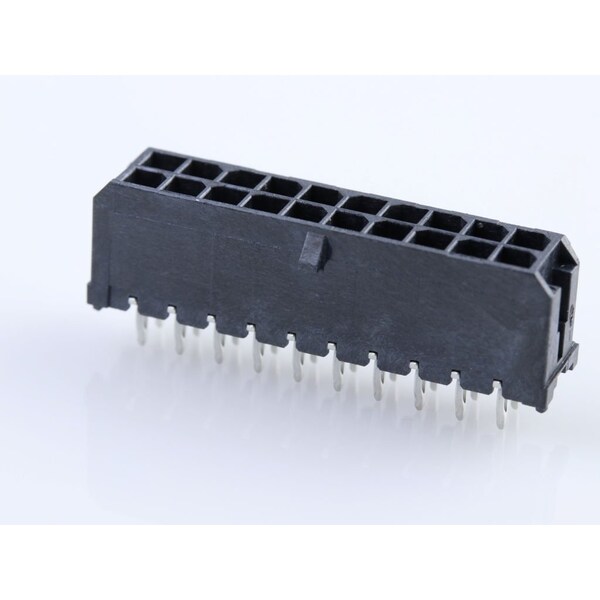

Conector de placa, 20 contactos, 2 filas, recto, paso de 0.118 pulgadas, terminal de ajuste por presión, bloqueo.
| Color | Black |
|---|---|
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Series | 44914 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 3 mm |
| Terminal Type | Through Hole - Compliant Pin |
| Features | Glow-Wire Capable |
| Max. Temp. | 105 deg C |
| Material | High Temperature Thermoplastic |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 2 |
| Current Rating | 8.5 A |
| Number of Contacts | 20 |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Component Type | PCB Header |
| UL | E29179 |
| Material - Metal | High Performance Alloy |
| Durability (mating cycles max) | 30 |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 8.5 A |
| Flammability | 94 V to 0 |
| Glow-Wire Capable | Yes |
| Stackable | No |
| Polarized to PCB | Yes |
| Plating min - Mating | 0.762 um |
| Breakaway | No |
| PCB Locator | Yes |
| Temperature Range - Operating | -40° to +125°C |
| Material - Resin | High Temperature Thermoplastic |
| CSA | LR19980 |
| Circuits (Loaded) | 20 |
| Shrouded | Fully |
| Orientation | Vertical |
| Pitch - Mating Interface | 3 mm |
| Material - Plating Mating | Gold |
| PCB Retention | Yes |
| Material - Plating Termination | Tin |
| Product Name | Micro-Fit CPI |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
