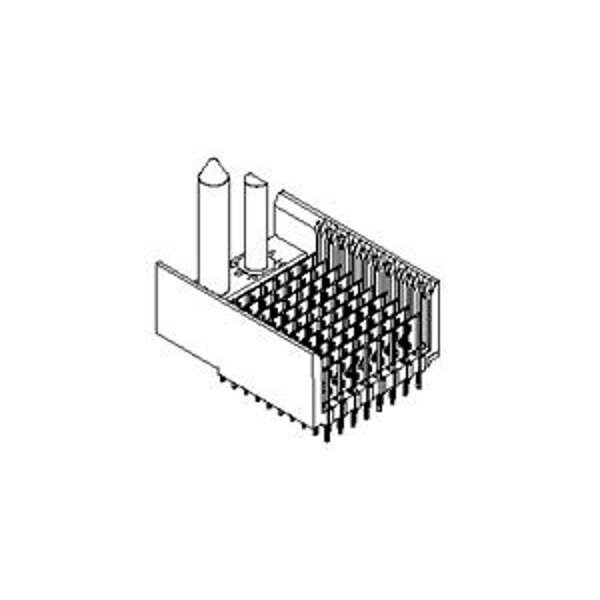

Board Connector, 225 Contact(S), 8 Row(S), Male, Straight, 0.079 Inch Pitch, Press Fit Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 120V AC/DC |
| Application | Backplane |
| Series | 74061 |
| Max. Temp. | 105 deg C |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 2 mm (Mating Interface); 1 mm (Termination Interface) |
| Features | Surface Mount Compatible |
| Material | High Temperature Thermoplastic |
| Number of Contacts | 200 |
| Current Rating | 3 A |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 8 |
| Terminal Finish | Matte Tin Plated |
| Contact Finish | Gold Plated |
| Polarized to PCB | Yes |
| Durability (mating cycles max) | 200 |
| Temperature Range - Operating | 105°C max |
| PCB Locator | No |
| Material - Metal | Beryllium Copper, High Performance Alloy, Stainless Steel |
| Plating min - Mating | 0.762 um |
| Voltage - Maximum | 120V AC (RMS)/DC |
| Keying to Mating Part | None |
| Material - Plating Termination | Matte Tin |
| PCB Retention | None |
| PC Tail Length | 2.5 mm |
| First Mate / Last Break | No |
| Number of Columns | 25 |
| Current - Maximum per Contact | 3 A |
| Shielded | Yes |
| Pitch - Mating Interface | 2 mm |
| Component Type | PCB Header |
| Guide to Mating Part | Yes |
| Material - Resin | High Temperature Thermoplastic |
| PCB Thickness - Recommended | 1.8 mm |
| Number of Pairs | Open Pin Field |
| Material - Plating Mating | Gold |
| Shield Type | Ground Plane Shield |
| Orientation | Vertical |
| Data Rate | 3.125 Gbps |
| Circuits (Loaded) | 200 |
| Product Name | VHDM |
| Package Quantity | 1 |
