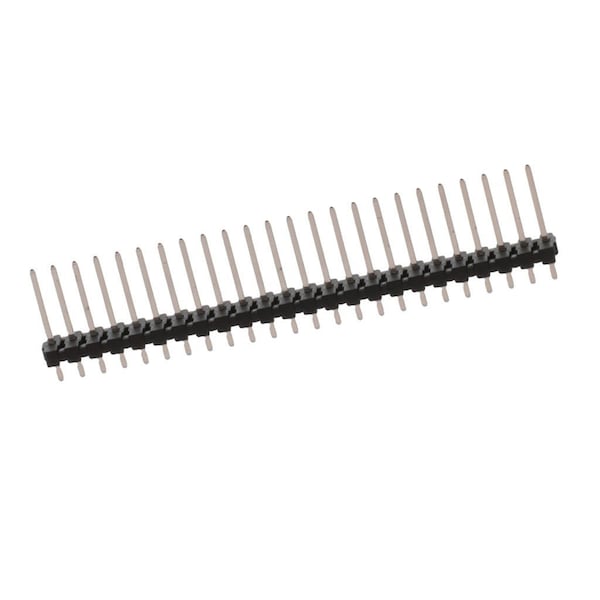

Board Connector, 24 Contact(S), 1 Row(S), Male, Straight, Solder Terminal
| Application | Board-to-Board, Signal, Wire-to-Board |
|---|---|
| Series | 41661 |
| Polarized to Mating Part | No |
| Number of Rows | 1 |
| Pitch - Mating Interface | 3.96 mm |
| Shrouded | No |
| Durability (mating cycles max) | 25 |
| Orientation | Vertical |
| Temperature Range - Operating | See Product Specification |
| Circuits (Loaded) | 24 |
| First Mate / Last Break | No |
| Max-Cycle | 1 |
| Color - Resin | Black |
| Guide to Mating Part | No |
| Flammability | 94 V to 0 |
| Keying to Mating Part | None |
| Voltage - Maximum | 250 V |
| Polarized to PCB | No |
| Termination Interface Style | Through Hole |
| PC Tail Length | 4.37 mm |
| PCB Thickness - Recommended | 1.6 mm |
| Component Type | PCB Header |
| PCB Locator | No |
| Product Name | KK 396 |
| Current - Maximum per Contact | 4.5 A |
| UL | E29179 |
| Stackable | Yes |
| Glow-Wire Capable | No |
| Max-Temp | 235 |
| Material - Metal | Brass |
| Lock to Mating Part | None |
| Material - Resin | Polyester |
| PCB Retention | None |
| Material - Plating Termination | Tin |
| CSA | LR19980 |
| Max-Duration | 5 |
| Breakaway | Yes |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
