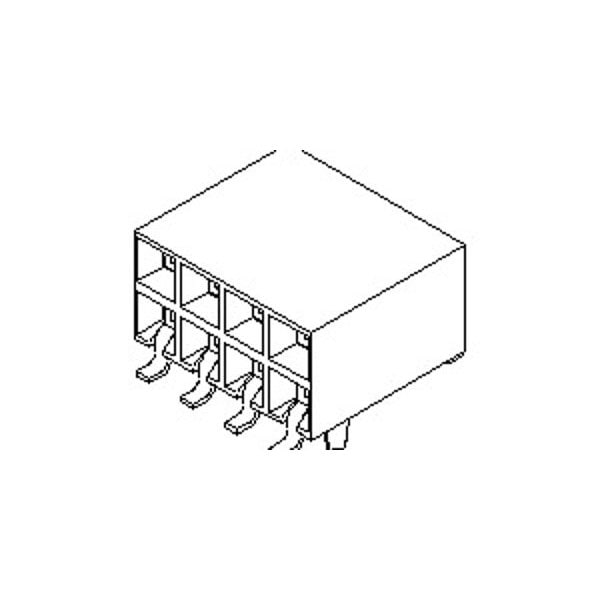

Board Connector, 24 Contact(S), 2 Row(S), Female, Right Angle, 0.1 Inch Pitch, Surface Mount
| Max. Voltage | 500 V AC |
|---|---|
| Application | Board-to-Board, Signal |
| Series | 71979 |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 260 deg C |
| Sub-Category | PCB Receptacles |
| Terminal Type | Surface Mount |
| Hole Center to Center | 2.54 mm |
| Number of Contacts | 24 |
| Current Rating | 1 A, 2 A, 3 A |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 µm |
| Pitch - Mating Interface | 2.54 mm |
| Temperature Range - Operating | -40° to +105°C |
| Orientation | Right Angle |
| PCB Retention | Yes |
| Material - Metal | Phosphor Bronze |
| Max-Cycle | 3 |
| Product Name | C-Grid |
| Material - Resin | High Temperature Thermoplastic |
| Plating min - Mating | 0.381 um |
| Material - Plating Termination | Tin |
| Polarized to PCB | No |
| Component Type | PCB Receptacle |
| Current - Maximum per Contact | 1 A, 2 A, 3 A |
| Max-Duration | 10 |
| Max-Temp | 260 |
| Glow-Wire Capable | No |
| PCB Thickness - Recommended | 2.4 mm |
| Circuits (Loaded) | 24 |
| Material - Plating Mating | Gold |
| Stackable | Yes |
| PCB Locator | Yes |
| Package Quantity | 1 |
