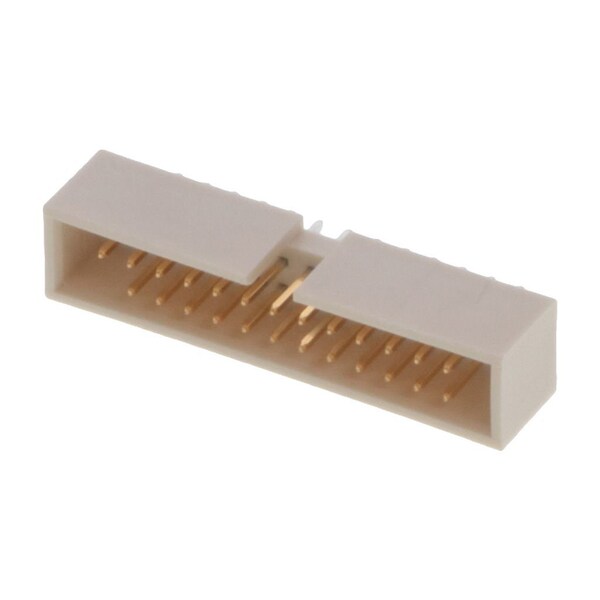

Conector de placa, 25 contactos, 2 filas, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, guía.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 87834 |
| Product Name | C-Grid |
| Material - Plating Mating | Gold |
| First Mate / Last Break | No |
| Color - Resin | Natural |
| Component Type | PCB Header |
| Stackable | No |
| Max-Cycle | 1 |
| Circuits (Loaded) | 25 |
| Flammability | 94 V to 0 |
| Number of Rows | 2 |
| UL | E29179 |
| PCB Retention | None |
| Lock to Mating Part | None |
| PCB Locator | No |
| Temperature Range - Operating | -55° to +120°C |
| Polarized to Mating Part | Center Slot |
| Keying to Mating Part | None |
| Material - Resin | Nylon |
| Max-Temp | 265 |
| Max-Duration | 5 |
| Polarized to PCB | No |
| Current - Maximum per Contact | 2.5 A |
| Plating min - Mating | 0.381 um |
| Glow-Wire Capable | No |
| Breakaway | No |
| Voltage - Maximum | 250 V |
| Termination Interface Style | Through Hole |
| Orientation | Vertical |
| Pitch - Mating Interface | 2.54 mm |
| PC Tail Length | 3.43 mm |
| Shrouded | Fully |
| Guide to Mating Part | No |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
