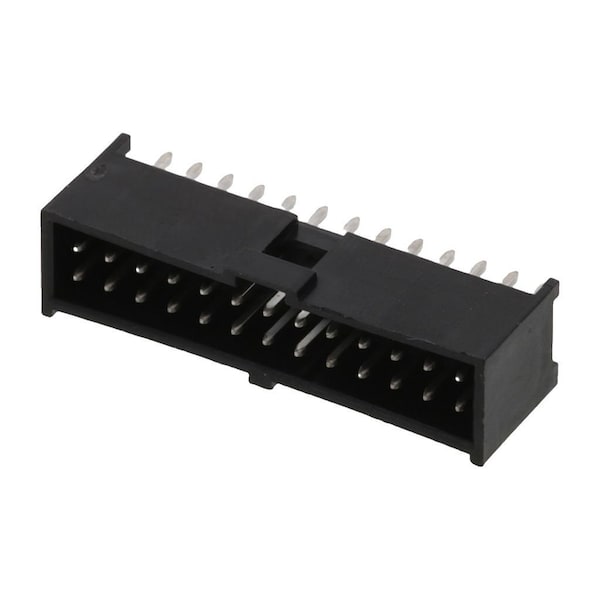

Conector de placa, 26 contactos, 2 filas, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, con seguro.
| Color | Black |
|---|---|
| Max. Voltage | 350V AC/DC |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 235 deg C |
| Terminal Type | Through Hole |
| Hole Center to Center | 2.54 mm |
| Material | Polyester |
| Contact Finish | Tin Plated |
| Contact Plating Thickness | 3.048 µm |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Number of Contacts | 26 |
| Current Rating | 3 A |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
