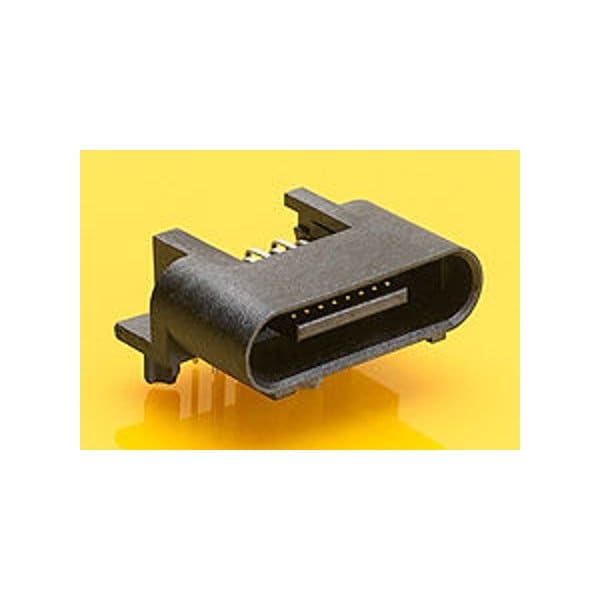

Board Connector, 28 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal, Plug
| Item | Power Connector |
|---|---|
| Color | Black |
| Max. Voltage | 250V AC/DC |
| Application | Board-to-Board, Signal |
| Series | 45985 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 1.27 mm |
| Material | High Temperature Thermoplastic |
| Sub-Category | PCB Headers |
| Terminal Type | Through Hole |
| Max. Temp. | 260 deg C |
| Features | Surface Mount Compatible |
| Number of Rows | 2 |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 28 |
| Contact Plating Thickness | 0.762 µm |
| Current Rating | 1 A |
| Contact Finish | Gold |
| Terminal Finish | Tin Plated |
| Product Name | EXTreme LPHPower |
| Shrouded | Fully |
| Material - Plating Termination | Tin |
| Material - Plating Mating | Gold |
| PCB Locator | Yes |
| Current - Maximum per Contact | 1 A |
| Durability (mating cycles max) | 250 |
| UL | E29179 |
| Glow-Wire Capable | No |
| Guide to Mating Part | Yes |
| Material - Metal | High Performance Alloy |
| Flammability | 94 V to 0 |
| Material - Resin | High Temperature Thermoplastic |
| Stackable | No |
| PC Tail Length | 2.9 mm |
| (p)ower-(s)ignal Configuration | 28s - 0p |
| PCB Thickness - Recommended | 2.36 mm |
| PCB Retention | None |
| Keying to Mating Part | None |
| Plating min - Mating | 0.762 um |
| Pitch - Mating Interface | 1.27 mm |
| Max-Temp | 260 |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Circuits (Loaded) | 28 |
| CSA | LR19980 |
| Breakaway | No |
| First Mate / Last Break | No |
| Polarized to PCB | Yes |
| Lock to Mating Part | No |
| Component Type | PCB Header |
| Max-Cycle | 3 |
| Max-Duration | 20 |
| Orientation | Right Angle |
| Package Quantity | 1 |
