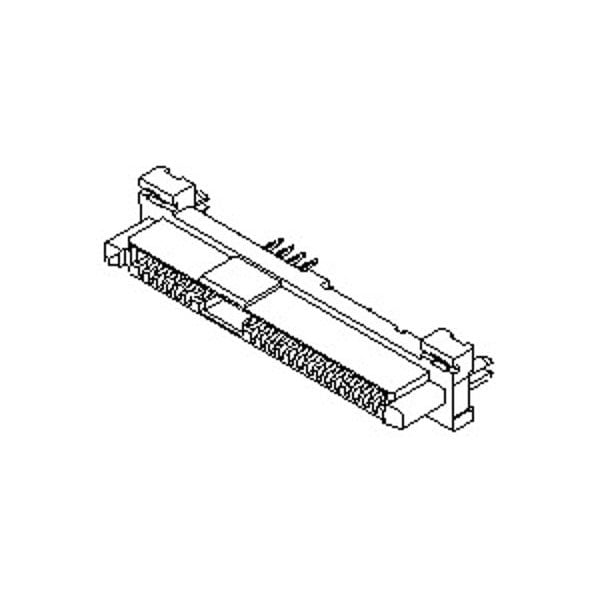

Conector de placa, 29 contactos, 2 filas, hembra, recto, paso de 0.05 pulgadas, terminal de ajuste por presión.
| Color | Black |
|---|---|
| Max. Voltage | 30 V |
| Standards | CSA Certified, UL E29179 |
| Connector Type | Female |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 0.8 mm, 1.27 mm |
| Terminal Type | Through Hole - Compliant Pin |
| Max. Temp. | 55 deg C |
| Number of Rows | 2 |
| Current Rating | 1.5 A |
| Number of Contacts | 29 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Package Quantity | 1 |
