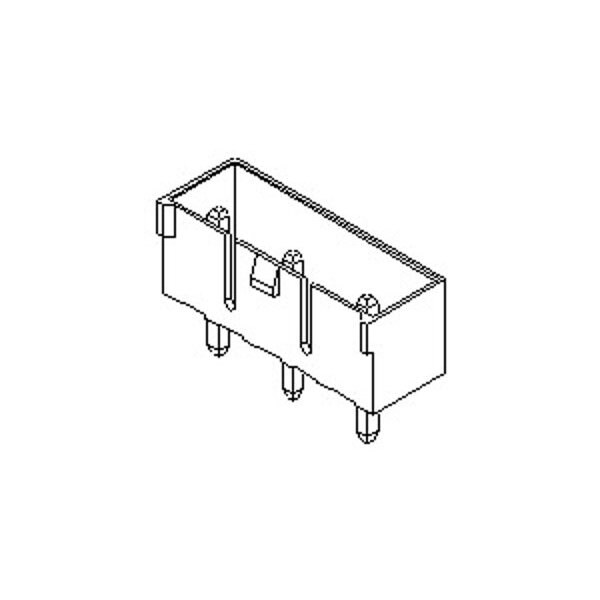

Board Connector, 3 Contact(S), 1 Row(S), Male, Straight, Solder Terminal
| Application | Power, Wire to-Board |
|---|---|
| Series | 35328 |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 7 A |
| Plating min - Mating | 5.08 um |
| Material - Plating Mating | Tin |
| First Mate / Last Break | No |
| PCB Retention | None |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Circuits (Loaded) | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| CSA | LR19980 |
| Breakaway | No |
| PCB Thickness - Recommended | 1.6 mm |
| Voltage - Maximum | 250 V |
| UL | E29179 |
| Color - Resin | Natural |
| Component Type | PCB Header |
| Keying to Mating Part | None |
| Material - Plating Termination | Tin |
| PC Tail Length | 3.4 mm |
| PCB Locator | No |
| Polarized to PCB | No |
| Shrouded | Partial |
| Guide to Mating Part | No |
| Flammability | 94 V to 0 |
| Pitch - Mating Interface | 7.92 mm |
| Termination Interface Style | Through Hole |
| Durability (mating cycles max) | 30 |
| Glow-Wire Capable | No |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
