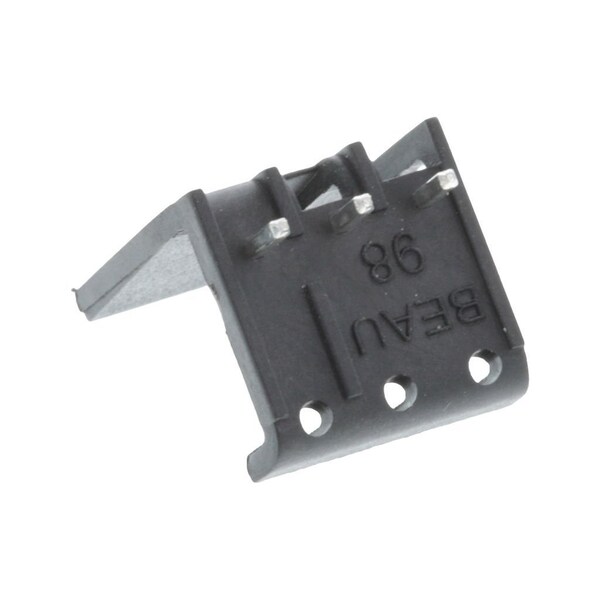

Conector de tarjeta, 3 contactos, 1 fila, macho, recto, terminal de soldadura.
| Color | Black |
|---|---|
| Max. Voltage | 300 V |
| Series | 39980 |
| Standards | UL E48521 |
| Material | Nylon |
| Current Rating | 10 A |
| Hole Center to Center | 5.08 mm |
| Max. Temp. | 140 deg C |
| Type | Block |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Number of Contacts | 3 |
| Contact Plating Thickness | 3.81 µm |
| Number of Rows | 1 |
| Component Type | PCB Header |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 5.08 mm |
| Orientation | Vertical |
| Product Name | Pluggable |
| Material - Plating Mating | Tin |
| Shrouded | No |
| Material - Resin | Nylon |
| Temperature Range - Operating | 140°C |
| Circuits (Loaded) | 3 |
| Flammability | 94 V to 0 |
| PCB Thickness - Recommended | 1.6 mm |
| Plating min - Mating | 3.81 um |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 10 A |
| UL | E48521 |
| PCB Retention | None |
| PC Tail Length | 3.81 mm |
| Package Quantity | 1 |
