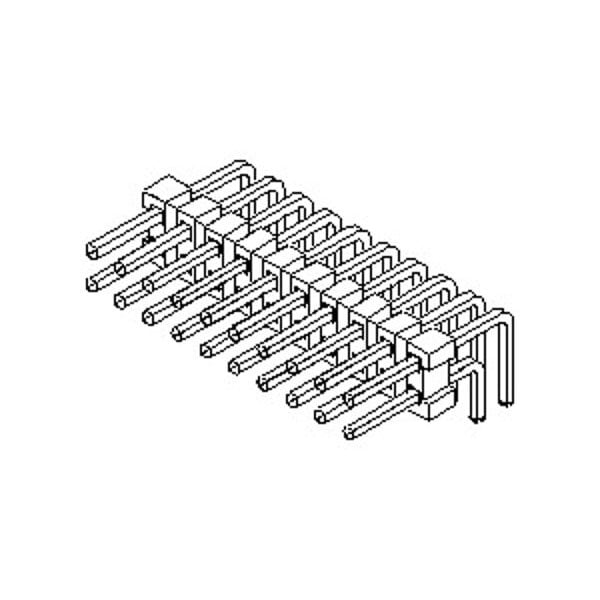

Conector para tablero, 30 contactos, 2 filas, macho, ángulo recto, terminal de soldadura.
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Standards | CSA Certified, UL E29179 |
| Features | Breakaway |
| Max. Temp. | 260 deg C |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Current Rating | 3 A |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Number of Contacts | 30 |
| Package Quantity | 1 |
