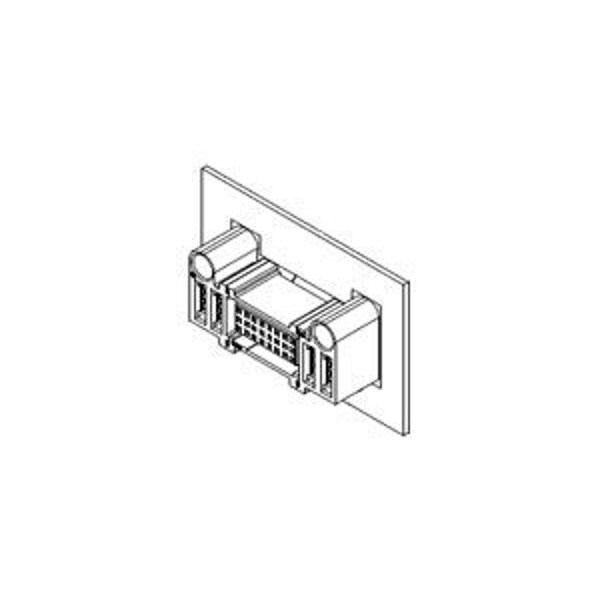

Conector de placa, 30 contactos, hembra, recto, terminal de soldadura, bloqueo, aislante negro.
| Color | Black |
|---|---|
| Max. Voltage | 600 V AC, 250 V DC |
| Application | Signal, Power, Board to-Board |
| Series | 46562 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole - Compliant Pin |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2.54 mm, 5.5 mm |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Current Rating | 2.5 A, 55 A |
| Number of Contacts | 30 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.127 µm |
| PCB Locator | No |
| Durability (mating cycles max) | 200 |
| Lock to Mating Part | No |
| Keying to Mating Part | None |
| Component Type | PCB Receptacle |
| (p)ower-(s)ignal Configuration | 3p - 24s - 3p |
| Product Name | EXTreme Ten60Power |
| Circuits (Loaded) | 30 |
| CSA | LR19980 |
| Voltage - Maximum | 600V AC / 250V DC |
| Flammability | 94 V to 0 |
| Polarized to PCB | Yes |
| Plating min - Mating | 0.127 um |
| Current - Maximum per Contact | 2.5 A, 55 A |
| UL | E29179 |
| Pitch - Mating Interface | 2.54 mm, 5.5 mm |
| Polarized to Mating Part | Yes |
| Orientation | Vertical |
| Glow-Wire Capable | No |
| Material - Resin | High Temperature Thermoplastic |
| Stackable | No |
| PCB Retention | None |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Temperature Range - Operating | -40° to +105°C |
| PCB Thickness - Recommended | 1.58 mm |
| Grounding to PCB | No |
| Material - Metal | Copper |
| Guide to Mating Part | Yes, Top |
| Package Quantity | 1 |
