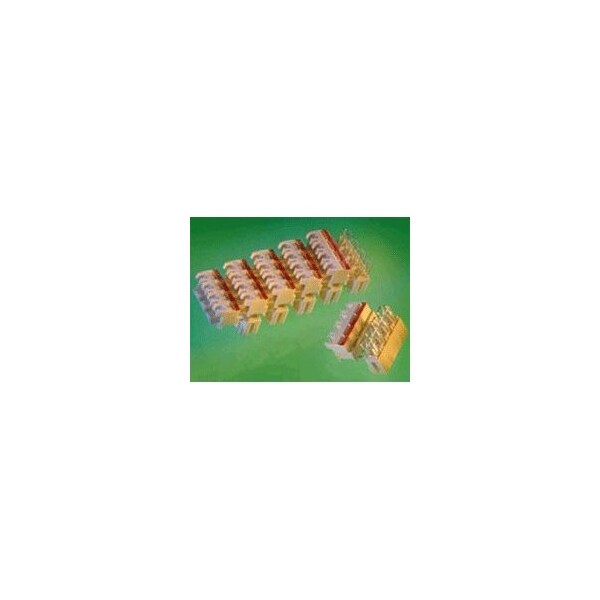

Conector de tablero, 4 contactos, 1 fila, hembra, recto, terminal de montaje superficial.
| Color | Natural |
|---|---|
| Max. Single Wire Size | 22 AWG |
| Min. Single Wire Size | 24 AWG |
| Max. Voltage | 32 V AC |
| Series | 91716 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2.5 mm |
| Terminal Type | IDT, Pierce |
| Sub-Category | Connectors |
| Max. Temp. | 120 deg C |
| Material | Nylon |
| Connector Type | Female |
| Number of Contacts | 4 |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Number of Rows | 1 |
| Contact Plating Thickness | 1.016 µm |
| Flammability Rating | UL 94V-0 |
| Current Rating | 2 A, 4 A |
| Circuits (Loaded) | 4 |
| Temperature Range - Operating | -20° to +120°C |
| CSA | LR19980 |
| Current - Maximum per Contact | 2 A, 4 A |
| Wire Size (AWG) | 22, 24 |
| Material - Metal | Phosphor Bronze |
| Product Name | RAST 2.5 |
| Glow-Wire Capable | No |
| Stackable | No |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 2.5 mm |
| Flammability | 94 V to 0 |
| Material - Resin | Nylon |
| Color - Resin | Natural |
| Material - Plating Termination | Tin |
| Material - Plating Mating | Tin |
| Durability (mating cycles max) | 10 |
| Lock to Mating Part | None |
| Plating min - Mating | 1.016 um |
| Package Quantity | 1 |
