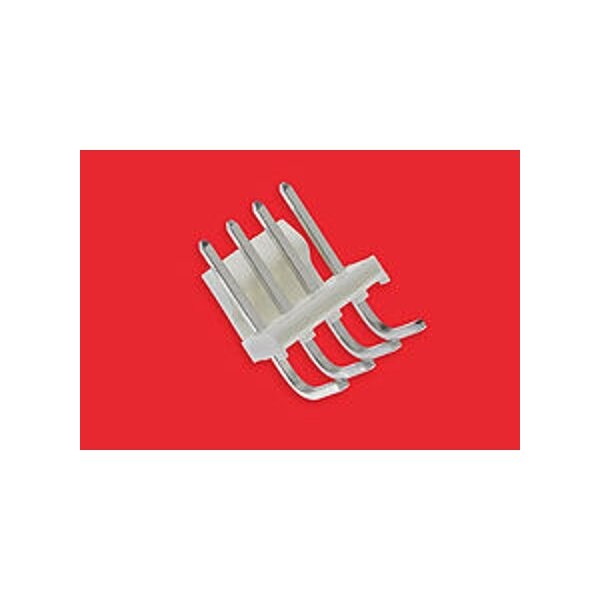

Board Connector, 4 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal,
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 3.96 mm |
| Max. Temp. | 235 deg C |
| Material | Polyester |
| Terminal Type | Through Hole |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Current Rating | 7 A |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Package Quantity | 1 |
