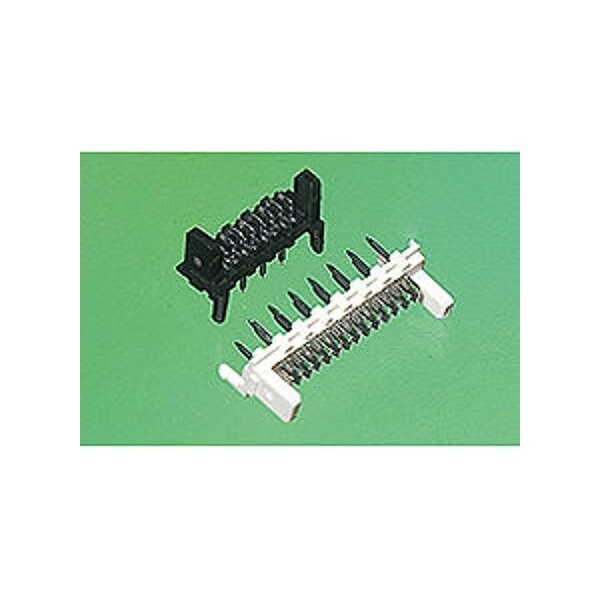

Conector para placa de circuito, 4 contactos, 2 filas, macho, recto, paso de 0.05 pulgadas, terminal de soldadura, color natural.
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 90779 |
| Standards | UL E29179 |
| Terminal Type | Through Hole |
| Hole Center to Center | 1.27 mm |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 105 deg C |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Number of Contacts | 4 |
| Current Rating | 1.2 A |
| Contact Finish | Tin Plated |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 4.064 µm |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 1.2 A |
| Shrouded | No |
| Product Name | Picoflex |
| Orientation | Vertical |
| Durability (mating cycles max) | 30 |
| Pitch - Mating Interface | 1.27 mm |
| Polarized to PCB | Yes |
| Keying to Mating Part | None |
| Component Type | PCB Header |
| Glow-Wire Capable | Yes |
| UL | E29179 |
| Stackable | No |
| Material - Metal | Brass |
| Guide to Mating Part | No |
| PCB Thickness - Recommended | 1.6 mm |
| First Mate / Last Break | No |
| PCB Retention | Yes |
| Polarized to Mating Part | Yes |
| Breakaway | No |
| Temperature Range - Operating | -40° to +105°C |
| Material - Resin | High Temperature Thermoplastic |
| Flammability | 94 V to 0 |
| Plating min - Mating | 4.064 um |
| Circuits (Loaded) | 4 |
| Package Quantity | 1 |
