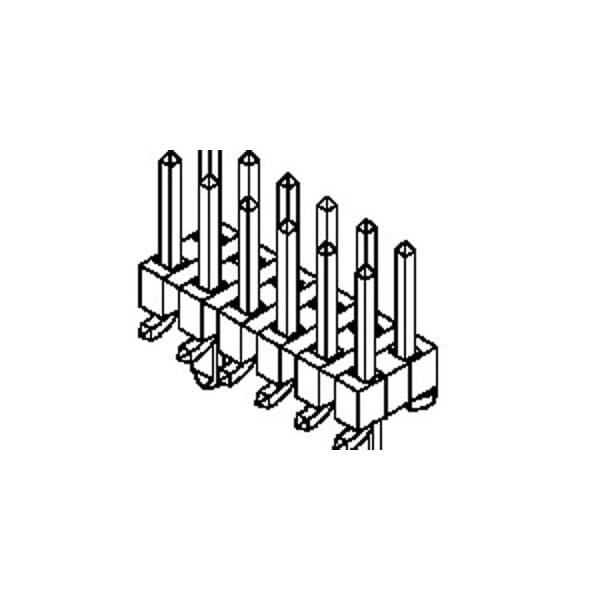

Conector de placa, 48 contactos, 2 filas, macho, recto, paso de 0.079 pulgadas, terminal de montaje en superficie.
| Application | Board-to-Board, Signal |
|---|---|
| Series | 87759 |
| Circuits (Loaded) | 48 |
| Shrouded | No |
| Mated Height | 3.8 mm |
| Pitch - Mating Interface | 2 mm |
| Termination Interface Style | Surface Mount |
| Voltage - Maximum | 125 V |
| Current - Maximum per Contact | 2 A |
| First Mate / Last Break | No |
| Glow-Wire Capable | No |
| Temperature Range - Operating | -55° to +105°C |
| Material - Resin | High Temperature Thermoplastic |
| Stackable | Yes |
| Orientation | Vertical |
| Guide to Mating Part | No |
| Material - Metal | Phosphor Bronze |
| Material - Plating Termination | Tin |
| Color - Resin | Black |
| Plating min - Mating | 0.381 um |
| Polarized to Mating Part | No |
| Max-Duration | 10 |
| Flammability | 94 V to 0 |
| Max-Temp | 260 |
| Keying to Mating Part | None |
| Durability (mating cycles max) | 100 |
| PCB Retention | None |
| Number of Rows | 2 |
| Component Type | PCB Header |
| Lock to Mating Part | None |
| UL | E29179 |
| Product Name | Milli-Grid |
| PCB Locator | Yes |
| Material - Plating Mating | Gold |
| Breakaway | Yes |
| Max-Cycle | 3 |
| Polarized to PCB | No |
| Package Quantity | 1 |
