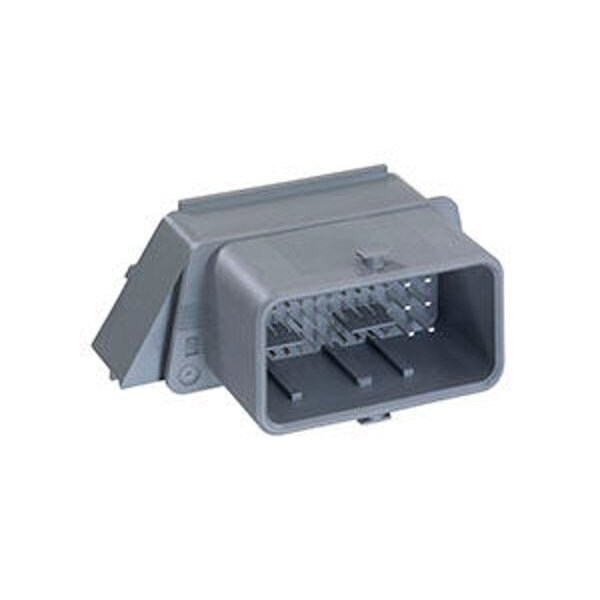

Board Connector, 48 Contact(S), 4 Row(S), Male, Right Angle, 0.098 Inch Pitch, Crimp Terminal,
| Color | Gray |
|---|---|
| Max. Voltage | 14 V DC |
| Application | Automotive, Power, Wire to-Board |
| Series | 500762 |
| Hole Center to Center | 2.5 mm, 3.5 mm, 3.7 mm |
| Max. Temp. | 125 deg C |
| Material | Alloy |
| Terminal Type | Solder, Weld |
| Number of Rows | 4 |
| Number of Contacts | 48 |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Current Rating | 12 A, 2.5 A |
| Product Name | CMC |
| Temperature Range - Operating | -40° to +125°C |
| Glow-Wire Capable | No |
| Polarized to PCB | Yes |
| Breakaway | No |
| Current - Maximum per Contact | 12 A, 2.5 A |
| PCB Thickness - Recommended | 1.6 mm |
| Lock to Mating Part | Yes |
| PC Tail Length | 3.6 mm |
| Circuits Detail | 8 x 1.5mm & 40 x 0.635mm terminals |
| Component Type | PCB Header |
| Shrouded | Closed Ends |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Guide to Mating Part | No |
| Durability (mating cycles max) | 20 |
| PCB Retention | None |
| Pitch - Mating Interface | 2.5 mm, 3.5 mm, 3.7 mm |
| Material - Plating Termination | Tin |
| Orientation | Right Angle |
| Keying to Mating Part | Yes |
| PCB Locator | Yes |
| Material - Plating Mating | Tin |
| First Mate / Last Break | Yes |
| Package Quantity | 1 |
