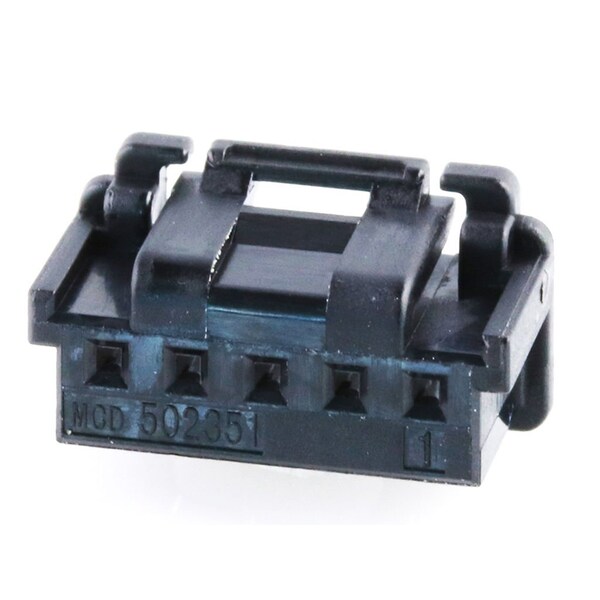

Conector de placa, 5 contactos, 1 fila, hembra, paso de 0.079 pulgadas, terminal de engarce, con bloqueo.
| Color | Black |
|---|---|
| Application | Automotive, Signal, Wire-to-Board |
| Series | 502351 |
| Connector Type | Receptacle |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2 mm |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Current Rating | 3 A |
| Temperature Range - Operating | -40° to +105°C |
| Keying to Mating Part | Yes |
| Pitch - Mating Interface | 2 mm |
| Lock to Mating Part | Yes |
| Circuits (maximum) | 5 |
| Current - Maximum per Contact | 3 A |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | No |
| Product Name | DuraClik |
| Package Quantity | 1 |
