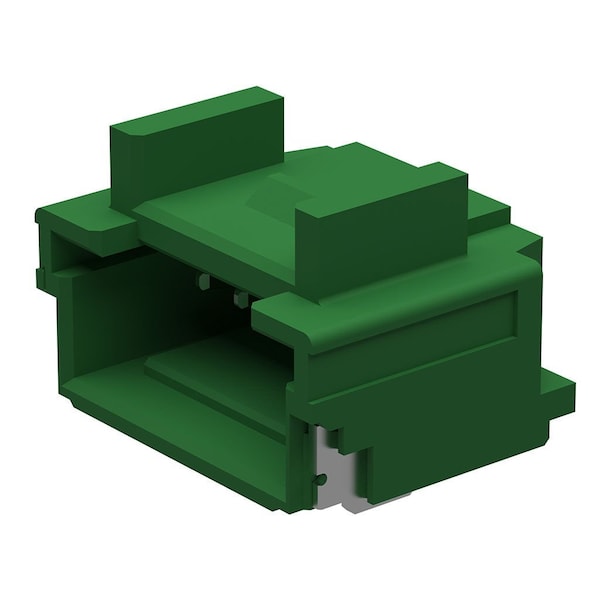

Board Connector, 5 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Surface Mount
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 501953 |
| Number of Rows | 1 |
| Material - Plating Termination | Gold |
| Shrouded | Fully |
| Current - Maximum per Contact | 1.5 A |
| Breakaway | No |
| Product Name | Pico-Clasp |
| Circuits (Loaded) | 5 |
| Material - Metal | Phosphor Bronze |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 1 mm |
| Durability (mating cycles max) | 30 |
| Guide to Mating Part | No |
| UL | E29179 |
| Stackable | No |
| Material - Plating Mating | Gold |
| Plating min - Mating | 0.102 um |
| Component Type | PCB Header |
| Voltage - Maximum | 100V AC (RMS)/DC |
| Material - Resin | Nylon |
| Lock to Mating Part | Yes |
| PCB Retention | Yes |
| Mated Height | 4.75 mm |
| First Mate / Last Break | No |
| Polarized to PCB | No |
| PCB Locator | No |
| Temperature Range - Operating | -40° to +105°C |
| Keying to Mating Part | None |
| Termination Interface Style | Surface Mount |
| Glow-Wire Capable | No |
| Orientation | Right Angle |
| Color - Resin | Green |
| Package Quantity | 1 |
