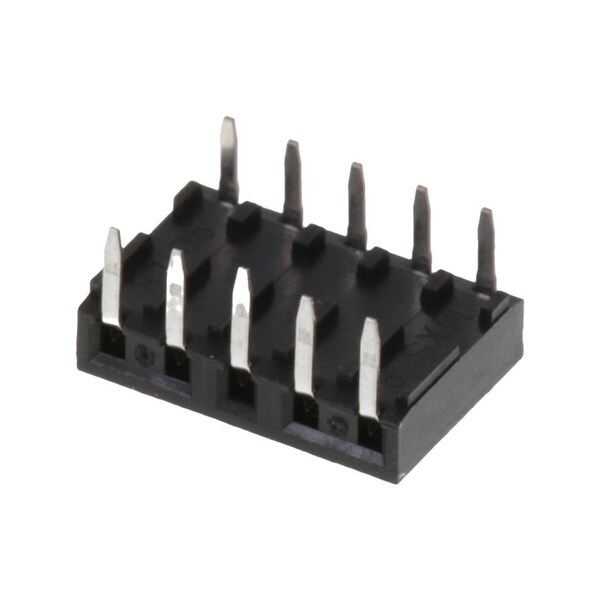

Conector de placa, 5 contactos, 1 fila, hembra, ángulo recto, terminal de soldadura, receptáculo.
| Color | Black |
|---|---|
| Max. Voltage | 350V AC/DC |
| Application | Board-to-Board, Signal |
| Series | 90148 |
| Standards | CSA Certified, UL E29179 |
| Material | Polyester |
| Terminal Type | Through Hole |
| Max. Temp. | 125 deg C |
| Hole Center to Center | 2.54 mm |
| Sub-Category | PCB Receptacles |
| Flammability Rating | UL 94V-0 |
| Current Rating | 3 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 1.016 µm |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Contact Finish | Tin Plated |
| Package Quantity | 1 |
