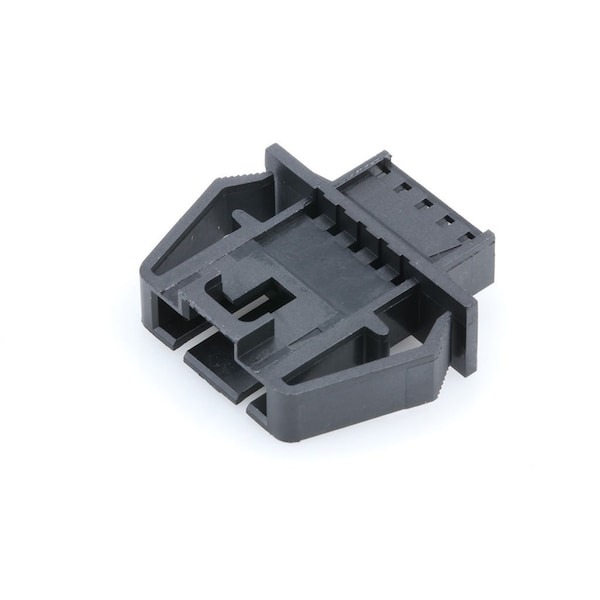

Conector de placa, 5 contactos, 1 fila, macho, paso de 0.1 pulgadas, terminal de engarce, aislante negro.
| Color | Black |
|---|---|
| Application | Signal, Wire-to-Wire |
| Series | 70107 |
| Standards | CSA Certified, UL E29179 |
| Material | Polyester |
| Max. Temp. | 105 deg C |
| Connector Type | Plug |
| Hole Center to Center | 2.54 mm |
| Number of Contacts | 5 |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Temperature Range - Operating | -40° to +105°C |
| Product Name | SL |
| UL | E29179 |
| Stackable | No |
| CSA | LR19980 |
| Material - Resin | Polyester |
| Panel Mount | Yes |
| Circuits (maximum) | 5 |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | No |
| Pitch - Mating Interface | 2.54 mm |
| Flammability | 94 V to 0 |
| Lock to Mating Part | None |
| Package Quantity | 1 |
