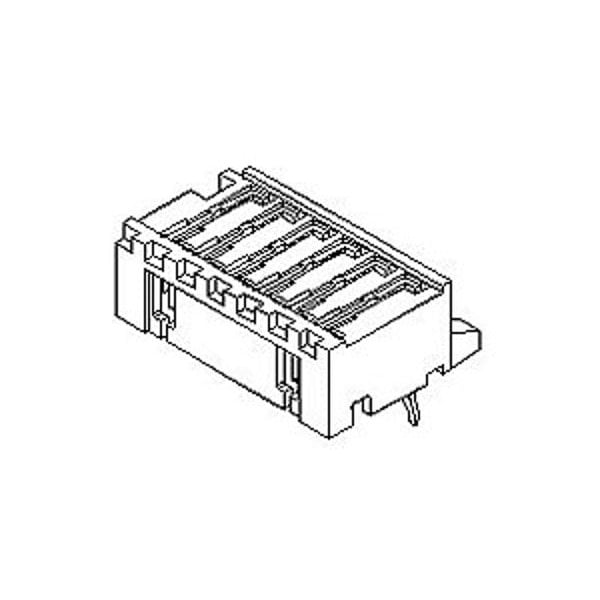

Conector de placa, 5 contactos, 1 fila, macho, recto, paso de 0.079 pulgadas, terminal de soldadura.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 53025 |
| Number of Rows | 1 |
| Shrouded | Fully |
| Material - Metal | Phosphor Bronze |
| Polarized to PCB | Yes |
| Guide to Mating Part | No |
| Termination Interface Style | Through Hole |
| PCB Retention | Yes |
| CSA | LR19980 |
| Material - Resin | Nylon |
| Glow-Wire Capable | No |
| Durability (mating cycles max) | 30 |
| Material - Plating Termination | Tin |
| Product Name | MicroBlade |
| First Mate / Last Break | No |
| PC Tail Length | 3.5 mm |
| Max-Temp | 260 |
| Max-Cycle | 1 |
| Orientation | Bottom Entry |
| Voltage - Maximum | 125 V |
| Current - Maximum per Contact | 2 A |
| Component Type | PCB Header |
| Breakaway | No |
| PCB Locator | No |
| Temperature Range - Operating | -20° to +85°C |
| Flammability | 94 V to 0 |
| Stackable | No |
| Pitch - Mating Interface | 2 mm |
| PCB Thickness - Recommended | 1.6 mm |
| Keying to Mating Part | None |
| Max-Duration | 25 |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 5 |
| Material - Plating Mating | Tin |
| UL | E29179 |
| Package Quantity | 1 |
