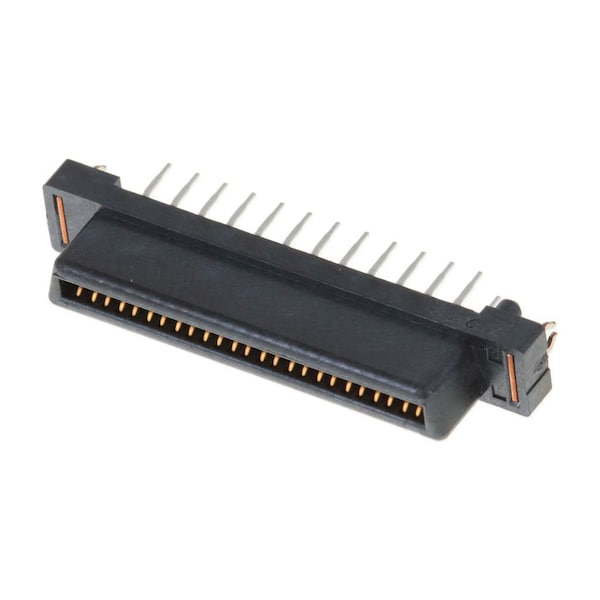

Board Connector, 50 Contact(S), 2 Row(S), Female, Straight, 0.05 Inch Pitch, Solder Terminal,
| Application | Board-to-Board, Signal |
|---|---|
| Series | 71660 |
| Material - Resin | High Temperature Thermoplastic |
| Circuits (Loaded) | 50 |
| PC Tail Length | 3.4 mm |
| CSA | LR19980 |
| Glow-Wire Capable | No |
| Durability (mating cycles max) | 2,000 |
| Number of Rows | 2 |
| Material - Plating Termination | Tin |
| UL | E29179 |
| Voltage - Maximum | 30 V |
| PCB Retention | Yes |
| Pitch - Mating Interface | 1.27 mm |
| Material - Plating Mating | Gold |
| Polarized to PCB | Yes |
| Flammability | 94 V to 0 |
| Plating min - Mating | 0.762 um |
| Product Name | EBBI |
| Termination Interface Style | Through Hole |
| Color - Resin | Black |
| Temperature Range - Operating | -40° to +105°C |
| Guide to Mating Part | Yes |
| Max-Temp | 260 |
| Orientation | Vertical |
| PCB Thickness - Recommended | 1.57 mm |
| PCB Locator | Yes |
| Material - Metal | Phosphor Bronze |
| Current - Maximum per Contact | 1 A |
| Component Type | PCB Receptacle |
| Package Quantity | 1 |
