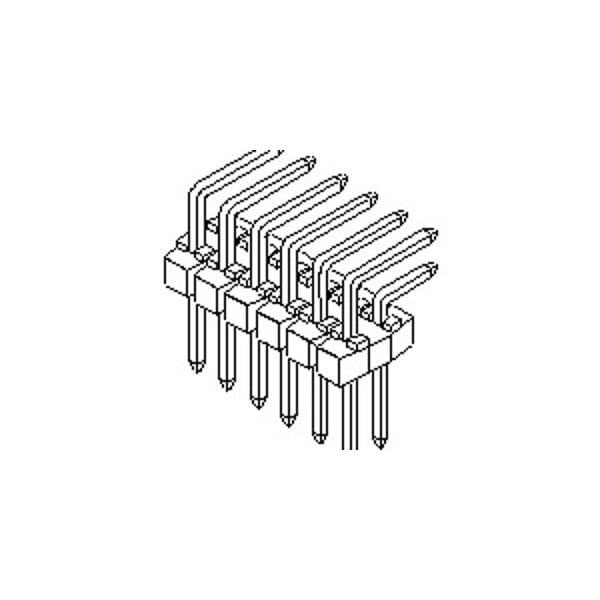

Conector de tarjeta, 50 contactos, 2 filas, macho, ángulo recto, paso de 0.1 pulgadas, terminal de soldadura, negro.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 90122 |
| Voltage - Maximum | 350 V |
| Circuits (Loaded) | 50 |
| Material - Plating Mating | Tin |
| PCB Locator | No |
| Color - Resin | Black |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Plating min - Mating | 3.048 um |
| Material - Metal | Brass |
| Polarized to PCB | No |
| Pitch - Mating Interface | 2.54 mm |
| Termination Interface Style | Through Hole |
| Guide to Mating Part | No |
| First Mate / Last Break | No |
| Keying to Mating Part | None |
| Product Name | C-Grid III |
| Glow-Wire Capable | No |
| PCB Retention | None |
| Component Type | PCB Header |
| UL | E29179 |
| PC Tail Length | 2.9 mm |
| Temperature Range - Operating | -55° to +125°C |
| Flammability | 94 V to 0 |
| Breakaway | Yes |
| Material - Plating Termination | Tin |
| Stackable | No |
| Current - Maximum per Contact | 3 A |
| Polarized to Mating Part | No |
| Material - Resin | Polyester |
| Shrouded | No |
| Lock to Mating Part | None |
| Package Quantity | 1 |
