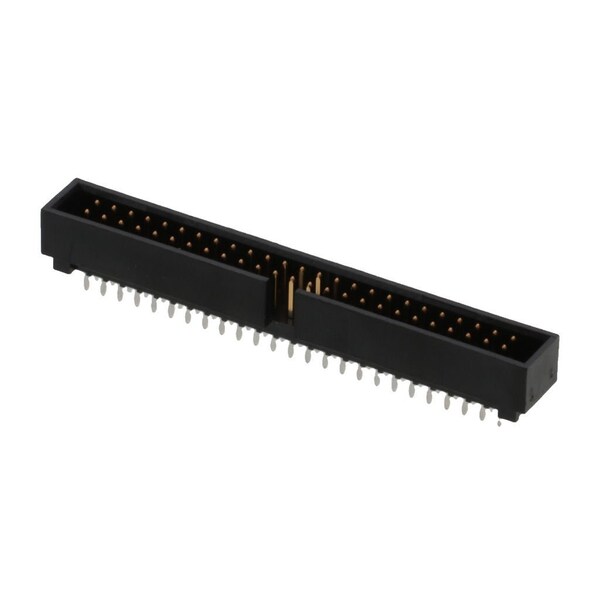

Board Connector, 50 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Guide
| Max. Voltage | 250 V DC |
|---|---|
| Application | Signal, Wire-to-Board |
| Series | 70246 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Max. Temp. | 235 deg C |
| Sub-Category | PCB Headers |
| Hole Center to Center | 2.54 mm |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.381 µm |
| Contact Finish | Gold Plated |
| Number of Contacts | 50 |
| Current Rating | 2.5 A |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Package Quantity | 1 |
