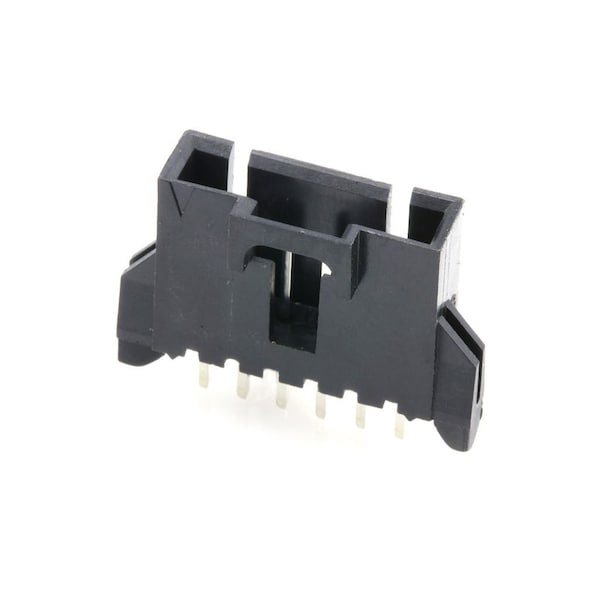

Conector de placa, 6 contactos, 1 fila, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, con seguro.
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 70545 |
| Standards | CSA Certified, UL E29179 |
| Features | Surface Mount Compatible |
| Max. Temp. | 245 deg C |
| Material | High Temperature Thermoplastic |
| Terminal Type | Through Hole |
| Hole Center to Center | 2.54 mm |
| Current Rating | 3 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 3.81 µm |
| Number of Rows | 1 |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 6 |
| Material - Plating Termination | Tin |
| Breakaway | No |
| PC Tail Length | 3.3 mm |
| Material - Metal | Brass, Phosphor Bronze |
| UL | E29179 |
| Shrouded | Fully |
| Circuits (Loaded) | 6 |
| Glow-Wire Capable | No |
| PCB Retention | Yes |
| Pitch - Mating Interface | 2.54 mm |
| Component Type | PCB Header |
| Product Name | SL |
| Polarized to Mating Part | Yes |
| Max-Duration | 3 |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Plating min - Mating | 3.81 um |
| PCB Locator | Yes |
| Max-Temp | 245 |
| CSA | LR19980 |
| Current - Maximum per Contact | 3 A |
| Orientation | Vertical |
| PCB Thickness - Recommended | 1.6 mm |
| Flammability | 94 V to 0 |
| Durability (mating cycles max) | 25 |
| Material - Resin | High Temperature Thermoplastic |
| Package Quantity | 1 |
