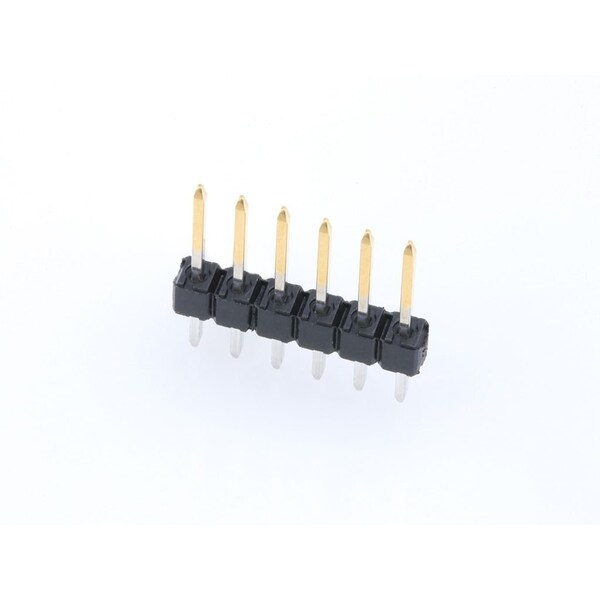

Conector de placa, 6 contactos, 1 fila, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, receptáculo.
| Color | Black |
|---|---|
| Max. Voltage | 500 V |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Features | Breakaway; Surface Mount Compatible |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Material | High Temperature Thermoplastic |
| Current Rating | 4 A |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| Number of Contacts | 6 |
| Contact Finish | Gold Plated |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
