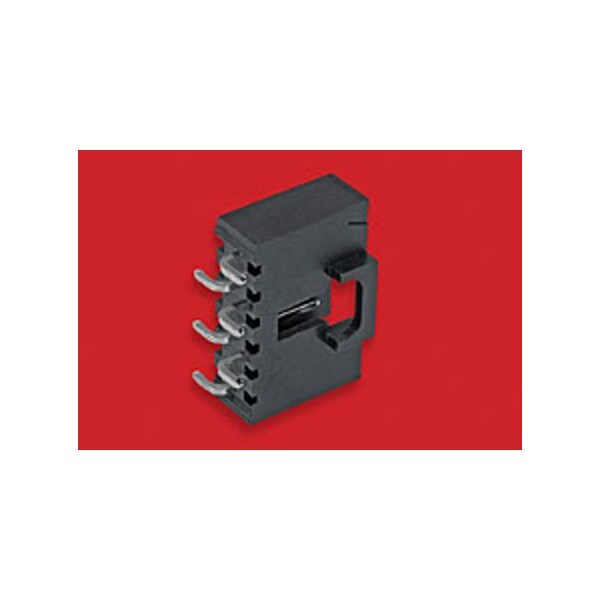

Board Connector, 6 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Surface Mount Terminal,
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 74099 |
| Temperature Range - Operating | -40° to +105°C |
| Orientation | Vertical |
| Material - Metal | Brass, Phosphor Bronze |
| Plating min - Mating | 3.81 um |
| Current - Maximum per Contact | 3 A |
| Color - Resin | Black |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Voltage - Maximum | 250 V |
| CSA | LR19980 |
| Pitch - Mating Interface | 2.54 mm |
| Polarized to Mating Part | Yes |
| Number of Rows | 1 |
| Max-Cycle | 3 |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 25 |
| Circuits (Loaded) | 6 |
| PCB Thickness - Recommended | 1.6 mm |
| Component Type | PCB Header |
| Product Name | SL |
| Shrouded | Fully |
| Flammability | 94 V to 0 |
| Max-Temp | 245 |
| Material - Plating Mating | Tin |
| Breakaway | No |
| Glow-Wire Capable | No |
| Termination Interface Style | Surface Mount |
| Max-Duration | 40 |
| Package Quantity | 1 |
