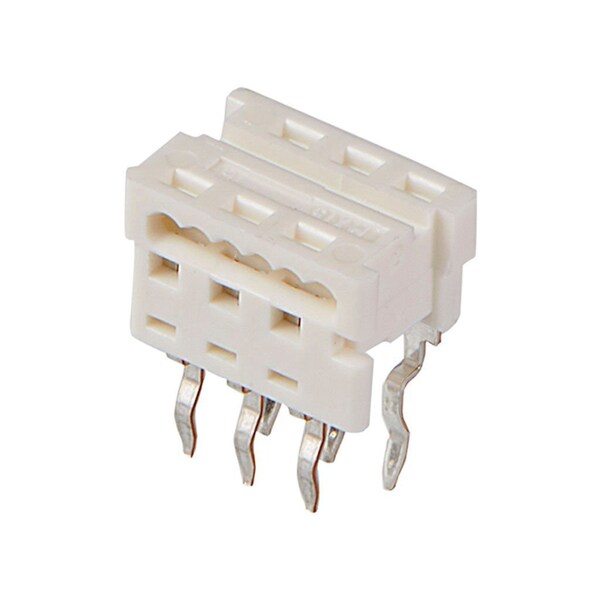

Board Connector, 6 Contact(S), 2 Row(S), Female, Straight, 0.1 Inch Pitch, Solder Terminal, White
| Color | Natural |
|---|---|
| Max. Single Wire Size | 26 AWG |
| Min. Single Wire Size | 28 AWG |
| Max. Voltage | 250 V |
| Series | 90584 |
| Standards | UL E29179 |
| Max. Temp. | 105 deg C |
| Max. Insulation Dia. | 1 mm |
| Material | Polyester |
| Hole Center to Center | 1.27 mm |
| Terminal Type | Through Hole - Kinked Pin |
| Number of Contacts | 6 |
| Current Rating | 1.2 A |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 2 |
| Contact Plating Thickness | 2.032 µm |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Stackable | No |
| Wire/Cable Type | Cable |
| Wire Insulation Diameter | 1 mm max. |
| Material - Plating Termination | Tin |
| Temperature Range - Operating | -40° to +105°C |
| Current - Maximum per Contact | 1.2 A |
| Material - Resin | Polyester |
| PCB Locator | No |
| Component Type | One Piece |
| UL | E29179 |
| Plating min - Mating | 2.032 um |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Mating | Tin |
| Gender | Receptacle |
| Lock to Mating Part | None |
| Durability (mating cycles max) | 30 |
| Glow-Wire Capable | No |
| Entry Angle | 90° Angle |
| Circuits (Loaded) | 6 |
| Pitch - Mating Interface | 1.27 mm |
| Wire Size (AWG) | 26, 28 |
| PCB Retention | Yes |
| Material - Metal | Phosphor Bronze |
| Polarized to PCB | Yes |
| Product Name | Picoflex |
| Flammability | 94 V to 0 |
| Package Quantity | 1 |
