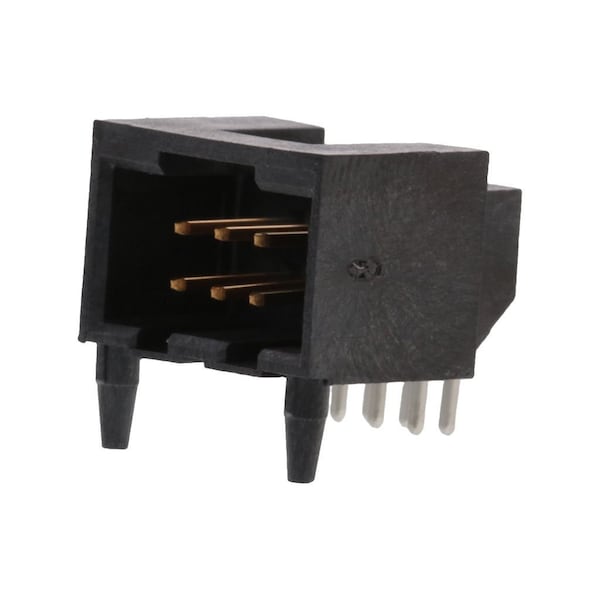

Board Connector, 6 Contact(S), 2 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Board-to-Board, Signal |
| Series | 74164 |
| Standards | UL E29179 |
| Terminal Type | Through Hole |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 2.54 mm |
| Sub-Category | PCB Receptacles |
| Material | High Temperature Thermoplastic |
| Number of Contacts | 6 |
| Current Rating | 2.5 A |
| Contact Plating Thickness | 0.381 µm |
| Number of Rows | 2 |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Component Type | PCB Receptacle |
| Polarized to PCB | No |
| Circuits (Loaded) | 6 |
| Material - Resin | High Performance Thermoplastic |
| PCB Retention | None |
| PCB Locator | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 2.5 A |
| Material - Plating Termination | Tin |
| Flammability | 94 V to 0 |
| Stackable | No |
| Robotic Placement | None |
| Durability (mating cycles max) | 50 |
| PCB Thickness - Recommended | 3.18 mm |
| Polarized to Mating Part | No |
| Glow-Wire Capable | No |
| Keying to Mating Part | None |
| UL | E29179 |
| Max-Cycle | 1 |
| Orientation | Right Angle |
| Guide to Mating Part | No |
| Product Name | C-Grid |
| Material - Metal | Phosphor Bronze |
| Max-Temp | 260 |
| Max-Duration | 5 |
| Plating min - Mating | 0.381 um |
| Pitch - Mating Interface | 2.54 mm |
| Grounding to PCB | No |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
