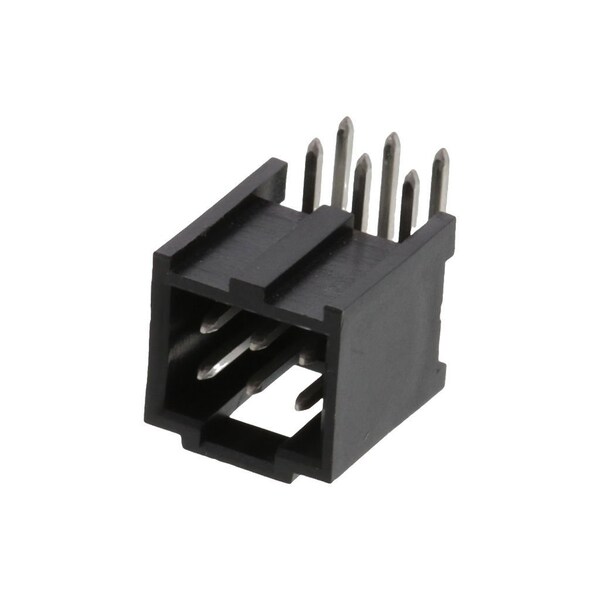

Conector para placa, 6 contactos, 2 filas, macho, ángulo recto, paso de 0.1 pulgadas, terminal de soldadura.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 91814 |
| Polarized to PCB | No |
| Max-Cycle | 1 |
| PCB Locator | No |
| Material - Resin | High Temperature Thermoplastic |
| PCB Retention | None |
| Voltage - Maximum | 350V AC/DC |
| Shrouded | Closed Ends |
| Pitch - Mating Interface | 2.54 mm |
| Number of Rows | 2 |
| Material - Metal | Brass |
| Max-Duration | 5 |
| Plating min - Mating | 3.048 um |
| Material - Plating Mating | Tin |
| Glow-Wire Capable | No |
| Circuits (Loaded) | 6 |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 30 |
| Component Type | PCB Header |
| PC Tail Length | 2.1 mm |
| Flammability | 94 V to 0 |
| Stackable | No |
| PCB Thickness - Recommended | 1.6 mm |
| Max-Temp | 260 |
| Temperature Range - Operating | -55° to +125°C |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Lock to Mating Part | None |
| Keying to Mating Part | None |
| Orientation | Right Angle |
| Termination Interface Style | Through Hole |
| Guide to Mating Part | No |
| Breakaway | No |
| First Mate / Last Break | No |
| Color - Resin | Black |
| Current - Maximum per Contact | 3 A |
| Product Name | C-Grid III |
| Package Quantity | 1 |
