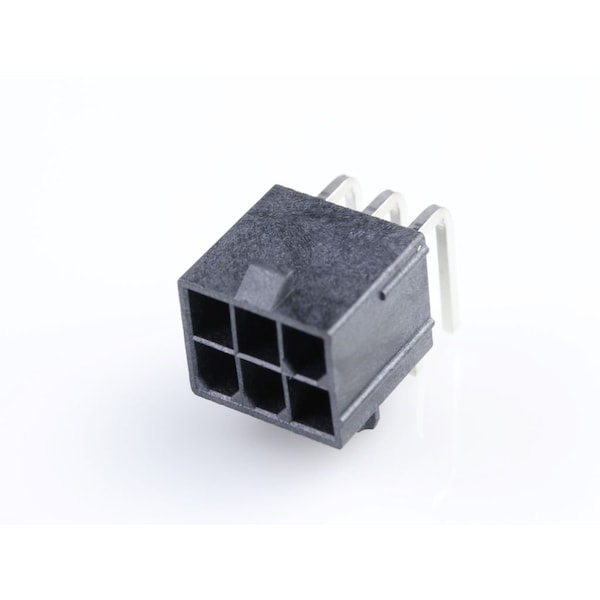

Conector de Placa, 6 Contactos, 2 Filas, Macho, Ángulo Recto, Terminal de Soldadura.
| Color | Black |
|---|---|
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Series | 5569 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Features | Glow-Wire Capable |
| Hole Center to Center | 4.2 mm |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 255 deg C |
| Number of Rows | 2 |
| Number of Contacts | 6 |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 2.54 µm |
| Contact Finish | Matte Tin Plated |
| Terminal Finish | Matte Tin Plated |
| Current Rating | 13 A |
| Plating min - Mating | 2.54 um |
| CSA | LR19980 |
| First Mate / Last Break | No |
| Current - Maximum per Contact | 13 A |
| Material - Plating Mating | Matte Tin |
| Pitch - Mating Interface | 4.2 mm |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Temperature Range - Operating | -40° to +105°C |
| Lock to Mating Part | Yes |
| Max-Temp | 255 |
| Component Type | PCB Header |
| Material - Metal | Brass |
| Max-Duration | 30 |
| Flammability | 94 V to 0 |
| Polarized to PCB | Yes |
| Guide to Mating Part | No |
| PC Tail Length | 3.5 mm |
| Durability (mating cycles max) | 30 |
| Material - Plating Termination | Matte Tin |
| Breakaway | No |
| Shrouded | Fully |
| Max-Cycle | 1 |
| Polarized to Mating Part | Yes |
| PCB Locator | Yes |
| Keying to Mating Part | None |
| PCB Retention | Yes |
| Product Name | Mini-Fit Jr. |
| Circuits (Loaded) | 6 |
| Glow-Wire Capable | Yes |
| Orientation | Right Angle |
| Stackable | No |
| PCB Thickness - Recommended | 1.78 mm |
| Package Quantity | 1 |
