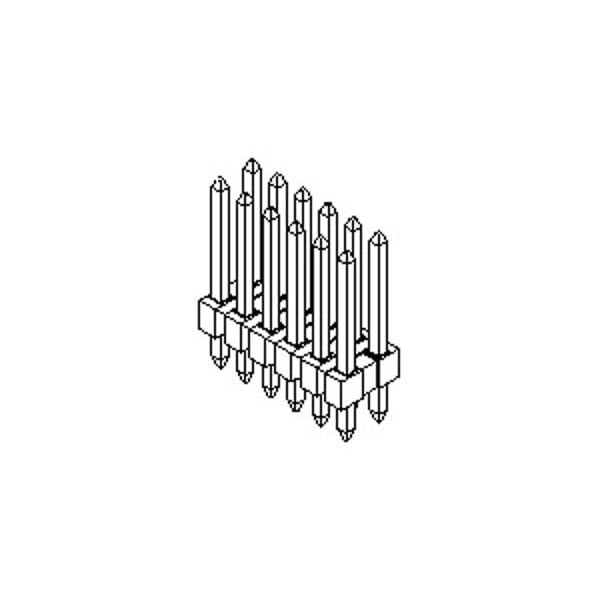

Conector de placa, 6 contactos, 2 filas, macho, recto, terminal de soldadura.
| Color | Black |
|---|---|
| Max. Voltage | 250 V DC |
| Application | Board-to-Board, Signal, Wire-to-Board |
| Series | 70287 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Terminal Type | Through Hole |
| Current Rating | 3 A |
| Hole Center to Center | 2.54 mm |
| Material | High Temperature Thermoplastic |
| Features | Breakaway; Surface Mount Compatible |
| Number of Contacts | 6 |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.381 µm |
| Terminal Finish | Tin Plated |
| Max-Temp | 260 |
| Glow-Wire Capable | No |
| UL | E29179 |
| Max-Cycle | 1 |
| Stackable | Yes |
| Flammability | 94 V to 0 |
| Max-Duration | 5 |
| PCB Retention | None |
| First Mate / Last Break | No |
| Current - Maximum per Contact | 3 A |
| PC Tail Length | 3.18 mm |
| PCB Locator | No |
| Shrouded | No |
| Lock to Mating Part | None |
| Temperature Range - Operating | -40° to +120°C |
| Product Name | C-Grid |
| Orientation | Vertical |
| Circuits (Loaded) | 6 |
| Polarized to PCB | No |
| Material - Resin | High Temperature Thermoplastic |
| Pitch - Mating Interface | 2.54 mm |
| Component Type | PCB Header |
| CSA | LR19980 |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 25 |
| Guide to Mating Part | No |
| Plating min - Mating | 0.381 um |
| PCB Thickness - Recommended | 1.57 mm |
| Polarized to Mating Part | No |
| Breakaway | Yes |
| Material - Plating Mating | Gold |
| Material - Metal | Brass |
| Package Quantity | 1 |
