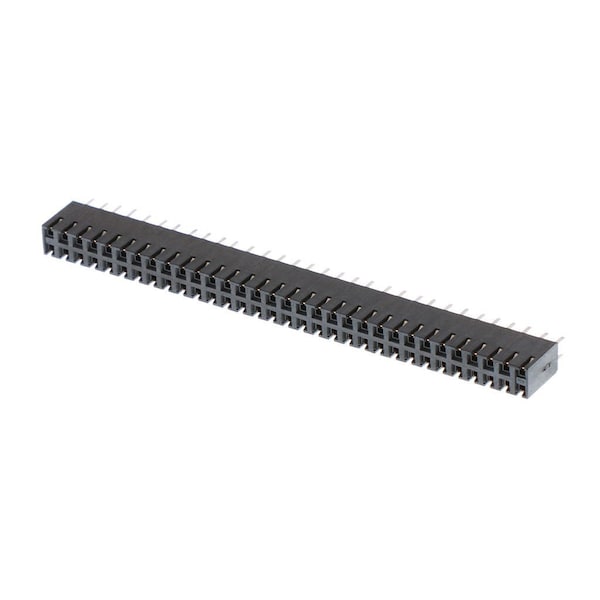

Board Connector, 64 Contact(S), 2 Row(S), Female, Straight, 0.1 Inch Pitch, Solder Terminal, Black
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Board-to-Board, Signal |
| Series | 71850 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Max. Temp. | 260 deg C |
| Sub-Category | PCB Receptacles |
| Hole Center to Center | 2.54 mm |
| Material | High Temperature Thermoplastic |
| Number of Rows | 2 |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Current Rating | 2.5 A |
| Number of Contacts | 64 |
| Contact Plating Thickness | 0.381 µm |
| Flammability Rating | UL 94V-0 |
| Product Name | C-Grid |
| Material - Resin | High Temperature Thermoplastic |
| Current - Maximum per Contact | 2.5 A |
| PCB Retention | None |
| Durability (mating cycles max) | 50 |
| Component Type | PCB Receptacle |
| Material - Metal | Phosphor Bronze |
| Plating min - Mating | 0.381 um |
| PCB Thickness - Recommended | 1.57 mm |
| Max-Temp | 260 |
| CSA | LR19980 |
| Glow-Wire Capable | No |
| PC Tail Length | 3.05 mm |
| Orientation | Vertical |
| UL | E29179 |
| Polarized to PCB | No |
| Flammability | 94 V to 0 |
| PCB Locator | No |
| Material - Plating Mating | Gold |
| Circuits (Loaded) | 64 |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 2.54 mm |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
