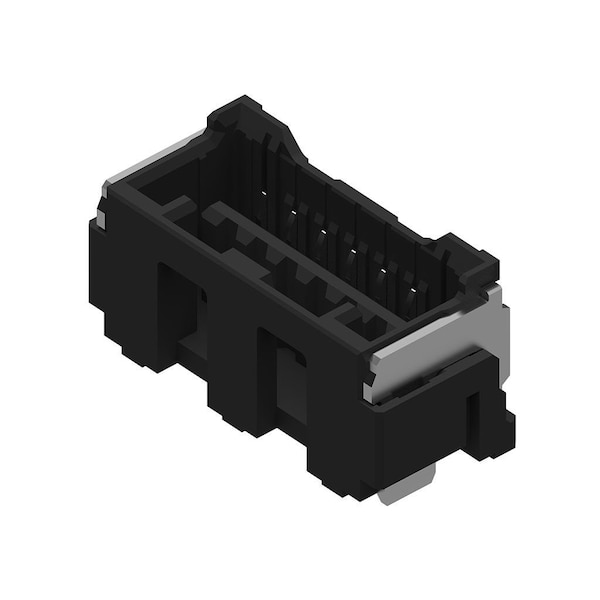

Board Connector, 7 Contact(S), 1 Row(S), Female, Straight, 0.059 Inch Pitch, Surface Mount
| Color | Black |
|---|---|
| Max. Voltage | 100 V |
| Application | Signal, Wire-to-Board |
| Series | 502584 |
| Terminal Type | Surface Mount |
| Material | Alloy |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 1.5 mm |
| Contact Finish | Tin Plated |
| Current Rating | 2 A |
| Number of Contacts | 7 |
| Number of Rows | 1 |
| Mated Height | 9.7 mm |
| Keying to Mating Part | None |
| Circuits (Loaded) | 7 |
| Polarized to PCB | No |
| Pitch - Mating Interface | 1.5 mm |
| PCB Locator | No |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Durability (mating cycles max) | 30 |
| Polarized to Mating Part | Yes |
| PCB Retention | Yes |
| Guide to Mating Part | Yes |
| Component Type | PCB Receptacle |
| Current - Maximum per Contact | 2 A |
| Orientation | Vertical |
| Glow-Wire Capable | No |
| Product Name | CLIK-Mate |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
