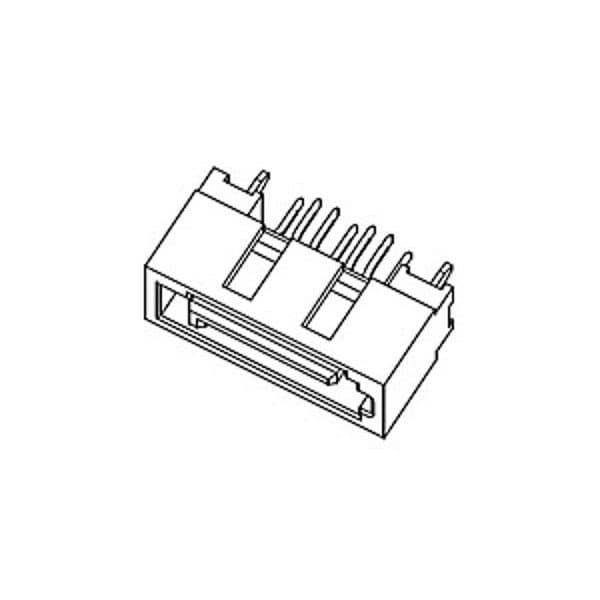

Conector de placa, 7 contactos, 1 fila, macho, recto, paso de 0.05 pulgadas, terminal de montaje en superficie.
| Application | Board-to-Board, Signal, Wire-to-Board |
|---|---|
| Series | 67800 |
| Voltage - Maximum | 15 V |
| Material - Plating Termination | Tin |
| Stackable | No |
| Shrouded | Fully |
| Durability (mating cycles max) | 50 |
| Color - Resin | Black |
| PCB Retention | Yes |
| Circuits (Loaded) | 7 |
| First Mate / Last Break | Yes |
| Number of Rows | 1 |
| Termination Interface Style | Surface Mount |
| Material - Resin | High Temperature Thermoplastic |
| Material - Plating Mating | Gold |
| Polarized to Mating Part | Yes |
| Product Name | Serial ATA |
| CSA | LR19980 |
| Polarized to PCB | Yes |
| Orientation | Vertical |
| Guide to Mating Part | No |
| Lock to Mating Part | Yes |
| Material - Metal | Brass |
| Flammability | 94 V to 0 |
| Breakaway | No |
| Glow-Wire Capable | No |
| UL | E29179 |
| Component Type | PCB Header |
| PCB Locator | Yes |
| Keying to Mating Part | Yes |
| Pitch - Mating Interface | 1.27 mm |
| Plating min - Mating | 0.051 um |
| Temperature Range - Operating | -35° to +85°C |
| Current - Maximum per Contact | 1.5 A |
| Package Quantity | 1 |
