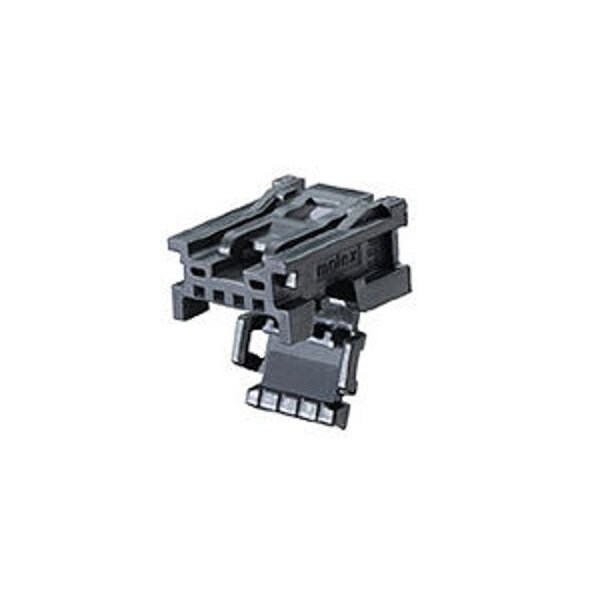

Board Connector, 8 Contact(S), 1 Row(S), Female, Crimp Terminal, Receptacle
| Color | Gray |
|---|---|
| Application | Automotive, Power, Wire to-Board |
| Series | 34791 |
| Hole Center to Center | 2 mm |
| Connector Type | Receptacle |
| Material | PBT |
| Max. Temp. | 105 deg C |
| Number of Rows | 1 |
| Number of Contacts | 8 |
| Polarization | B |
| Material - Resin | PBT |
| Polarized to Mating Part | Yes |
| Keying to Mating Part | Yes |
| Product Name | Mini50 |
| Circuits (maximum) | 8 |
| Pitch - Mating Interface | 2 mm |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | No |
| Lock to Mating Part | Yes |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
