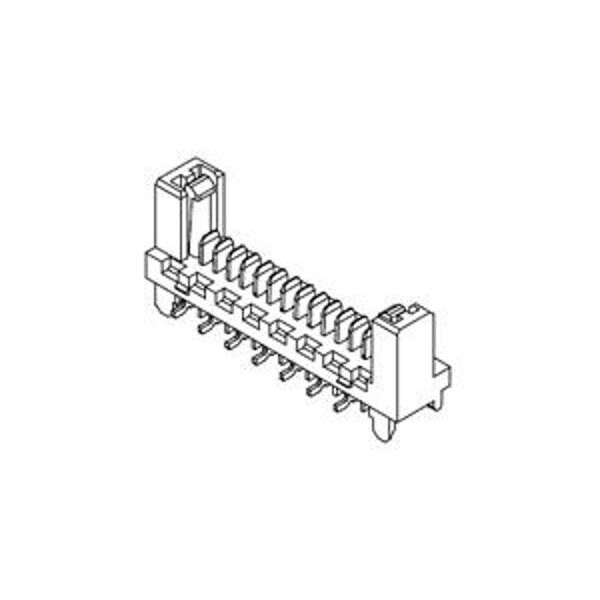

Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, 0.05 Inch Pitch, Surface Mount Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 90816 |
| Terminal Type | Surface Mount |
| Features | Surface Mount Compatible |
| Max. Temp. | 105 deg C |
| Material | Nylon |
| Hole Center to Center | 1.27 mm |
| Terminal Finish | Nickel Plated |
| Number of Rows | 1 |
| Current Rating | 1.2 A |
| Number of Contacts | 8 |
| Contact Plating Thickness | 0.076 µm |
| Contact Finish | Tin Plated |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Locator | Yes |
| Product Name | Picoflex |
| Pitch - Mating Interface | 1.27 mm |
| Material - Plating Mating | Tin |
| PC Tail Length | 1.05 mm |
| Breakaway | No |
| Material - Plating Termination | Nickel |
| Glow-Wire Capable | No |
| Circuits (Loaded) | 8 |
| PCB Retention | None |
| Temperature Range - Operating | -40° to +105°C |
| First Mate / Last Break | No |
| Polarized to Mating Part | Yes |
| Material - Resin | Nylon |
| Shrouded | Partial |
| Orientation | Vertical |
| Lock to Mating Part | Yes |
| Material - Metal | Brass |
| Plating min - Mating | 0.076 um |
| Durability (mating cycles max) | 5 |
| Stackable | No |
| Current - Maximum per Contact | 1.2 A |
| Polarized to PCB | Yes |
| Guide to Mating Part | No |
| Component Type | PCB Header |
| Package Quantity | 1 |
