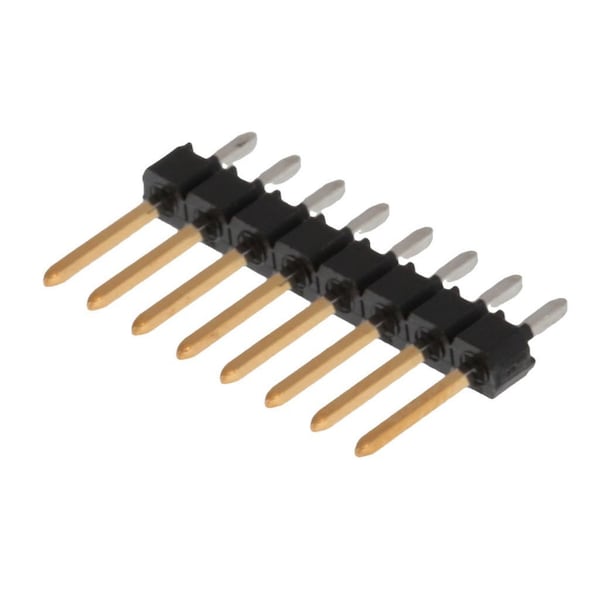

Conector de placa, 8 contactos, 1 fila, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, color negro.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 90120 |
| Glow-Wire Capable | No |
| Plating min - Mating | 0.381 um |
| Product Name | C-Grid III |
| Max-Cycle | 1 |
| Material - Metal | Brass |
| Polarized to Mating Part | No |
| Material - Plating Termination | Nickel |
| Material - Plating Mating | Gold |
| Polarized to PCB | No |
| Max-Temp | 235 |
| Breakaway | Yes |
| Stackable | No |
| Material - Resin | Polyester |
| CSA | LR19980 |
| Current - Maximum per Contact | 3 A |
| PCB Thickness - Recommended | 1.6 mm |
| Temperature Range - Operating | -55° to +125°C |
| Voltage - Maximum | 350V AC/DC |
| First Mate / Last Break | No |
| Color - Resin | Black |
| Component Type | PCB Header |
| Number of Rows | 1 |
| Lock to Mating Part | None |
| PCB Locator | No |
| PCB Retention | None |
| Orientation | Vertical |
| Keying to Mating Part | None |
| Guide to Mating Part | No |
| PC Tail Length | 2.9 mm |
| Max-Duration | 3 |
| Durability (mating cycles max) | 200 |
| Flammability | 94 V to 0 |
| Circuits (Loaded) | 8 |
| Pitch - Mating Interface | 2.54 mm |
| Termination Interface Style | Through Hole |
| Shrouded | No |
| UL | E29179 |
| Package Quantity | 1 |
