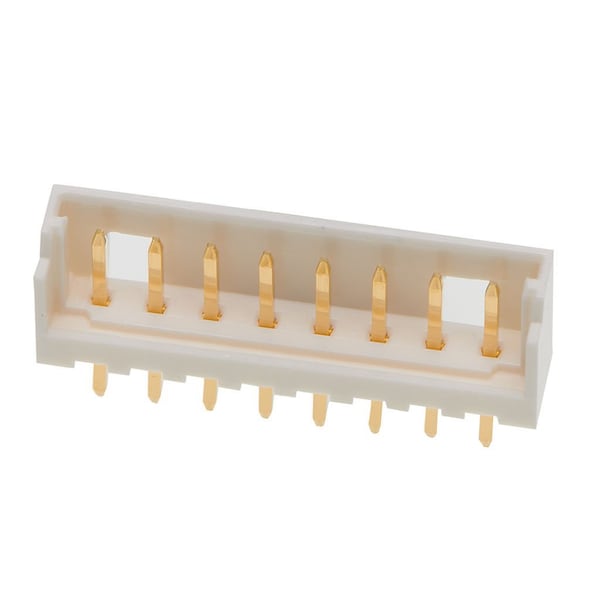

Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, Solder Terminal
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 502603 |
| Glow-Wire Capable | No |
| Polarized to PCB | No |
| Stackable | No |
| Current - Maximum per Contact | 2 A |
| Circuits (Loaded) | 8 |
| Lock to Mating Part | Yes |
| PCB Retention | Yes |
| Product Name | Micro-Latch |
| Pitch - Mating Interface | 2 mm |
| PCB Locator | No |
| Voltage - Maximum | 250 V |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Resin | Polyamide |
| Temperature Range - Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
| Orientation | Vertical |
| Shrouded | Partial |
| Material - Metal | Brass |
| Component Type | PCB Header |
| Breakaway | No |
| PC Tail Length | 3.5 mm |
| Plating min - Mating | 0.1 um |
| Number of Rows | 1 |
| Material - Plating Mating | Gold |
| Durability (mating cycles max) | 30 |
| Polarized to Mating Part | Yes |
| First Mate / Last Break | No |
| Color - Resin | Natural |
| Package Quantity | 1 |
