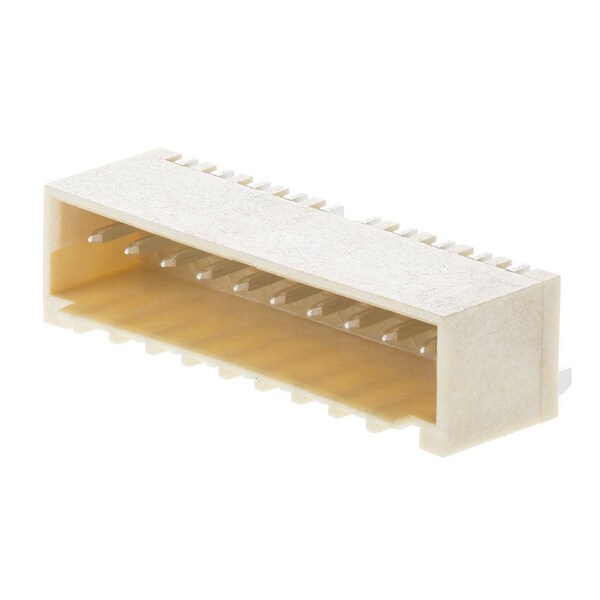

Board Connector, 9 Contact(S), 1 Row(S), Male, Right Angle, 0.059 Inch Pitch, Surface Mount
| Color | Beige |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 87438 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 105 deg C |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 1.5 mm |
| Terminal Type | Surface Mount |
| Current Rating | 2.5 A |
| Number of Contacts | 9 |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Tin Plated |
| Contact Plating Thickness | 2.54 µm |
| Terminal Finish | Tin Plated |
| Number of Rows | 1 |
| Circuits (Loaded) | 9 |
| CSA | LR19980 |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Breakaway | No |
| Material - Metal | Brass |
| Flammability | 94 V to 0 |
| Polarized to Mating Part | Yes |
| Product Name | Pico-SPOX |
| First Mate / Last Break | No |
| Stackable | No |
| Keying to Mating Part | Yes |
| PCB Retention | None |
| Guide to Mating Part | No |
| PCB Locator | No |
| Current - Maximum per Contact | 2.5 A |
| UL | E29179 |
| Shrouded | Fully |
| Component Type | PCB Header |
| Material - Resin | High Temperature Thermoplastic |
| Temperature Range - Operating | -55° to +105°C |
| Polarized to PCB | No |
| Glow-Wire Capable | No |
| Plating min - Mating | 2.54 um |
| Durability (mating cycles max) | 10 |
| Orientation | Right Angle |
| Pitch - Mating Interface | 1.5 mm |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
