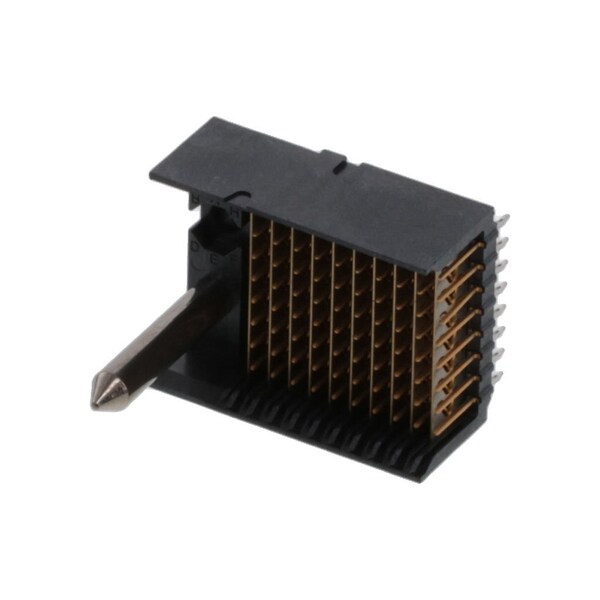

Conector de placa, 90 contactos, 8 filas, macho, recto, paso de 0.079 pulgadas, terminal de inserción a presión.
| Color | Black |
|---|---|
| Max. Voltage | 120V AC/DC |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2 mm (Mating Interface); 1 mm (Termination Interface) |
| Terminal Type | Through Hole - Compliant Pin |
| Material | High Temperature Thermoplastic |
| Features | Surface Mount Compatible |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 8 |
| Terminal Finish | Tin Lead Plated |
| Contact Finish | Gold Plated |
| Current Rating | 3 A |
| Number of Contacts | 80 |
| Package Quantity | 1 |
