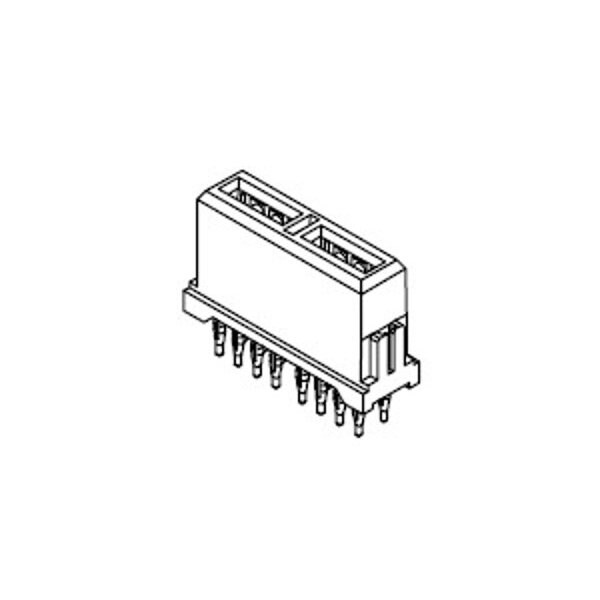

Conector de placa, Hembra, Recto, Terminal de ajuste por presión, Con seguro, Aislante negro, Receptáculo
| Color | Black |
|---|---|
| Max. Voltage | 450 V |
| Application | Power, Board to-Board |
| Series | 75545 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 3.33 mm |
| Features | Surface Mount Compatible |
| Max. Temp. | 230 deg C |
| Terminal Type | Through Hole - Compliant Pin |
| Material | High Temperature Thermoplastic |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Current Rating | 40 A |
| Number of Contacts | 2 |
| Flammability Rating | UL 94V-0 |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Glow-Wire Capable | No |
| Max-Duration | 20 |
| Flammability | 94 V to 0 |
| Material - Plating Termination | Tin |
| Guide to Mating Part | No |
| Max-Cycle | 1 |
| Material - Metal | High Performance Alloy |
| Orientation | Vertical |
| Circuits (Loaded) | 2 |
| Lock to Mating Part | No |
| PC Tail Length | 4.72 mm |
| Current - Maximum per Contact | 40 A |
| PCB Locator | No |
| PCB Thickness - Recommended | 3.18 mm |
| Pitch - Mating Interface | 3.33 mm |
| Polarized to Mating Part | No |
| Durability (mating cycles max) | 250 |
| Max-Temp | 230 |
| Material - Plating Mating | Gold |
| Keying to Mating Part | None |
| Temperature Range - Operating | -40° to +105°C |
| Polarized to PCB | No |
| Grounding to PCB | No |
| CSA | LR19980 |
| Product Name | EXTreme PowerMass |
| Stackable | No |
| PCB Retention | None |
| Component Type | PCB Receptacle |
| Package Quantity | 1 |
