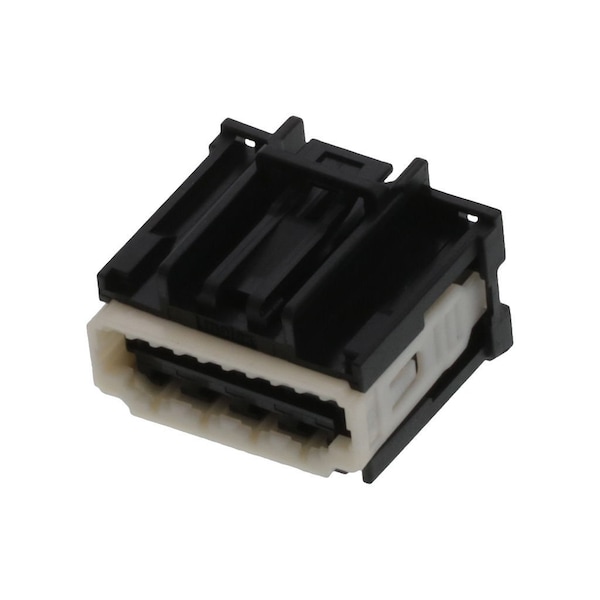

Conector de tablero, macho, recto, terminal de engarce, con seguro, aislante negro, receptáculo.
| Color | Black |
|---|---|
| Application | Automotive, Power, Signal, Wire-to-Board |
| Series | 34969 |
| Number of Ports | 1 |
| Connector Type | Receptacle |
| Material | Modified Polystyrene |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2.54 mm, 5.25 mm |
| Number of Rows | 2 |
| Number of Contacts | 14 |
| Current Rating | 30 A, 6 A |
| Temperature Range - Operating | -40° to +105°C |
| Lock to Mating Part | No |
| Current - Maximum per Contact | 30 A, 6 A |
| Circuits Detail | 21 x 0.64 and 4 x 2.8 |
| Product Name | Stac64 |
| Keying to Mating Part | Yes |
| Glow-Wire Capable | No |
| Polarized to Mating Part | Yes |
| Stackable | No |
| Pitch - Mating Interface | 2.54 mm, 5.25 mm |
| Material - Resin | Modified Polystyrene |
| Package Quantity | 1 |
