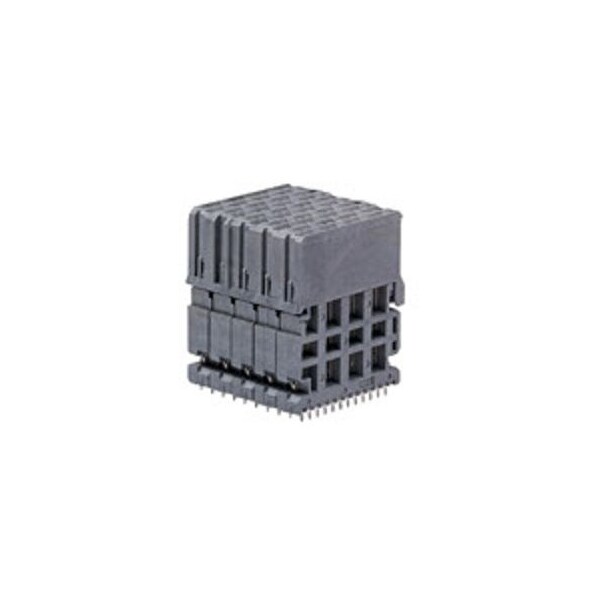

Board Stacking Connector, 120 Contact(S), 12 Row(S), Female, Straight, 0.075 Inch Pitch, Press Fit
| Color | Gray |
|---|---|
| Max. Voltage | 30V AC/DC |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 85 deg C |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 1.35 mm, 1.9 mm |
| Current Rating | 0.75 A |
| Number of Contacts | 120 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Matte Tin Plated |
| Number of Rows | 12 |
| Package Quantity | 1 |
