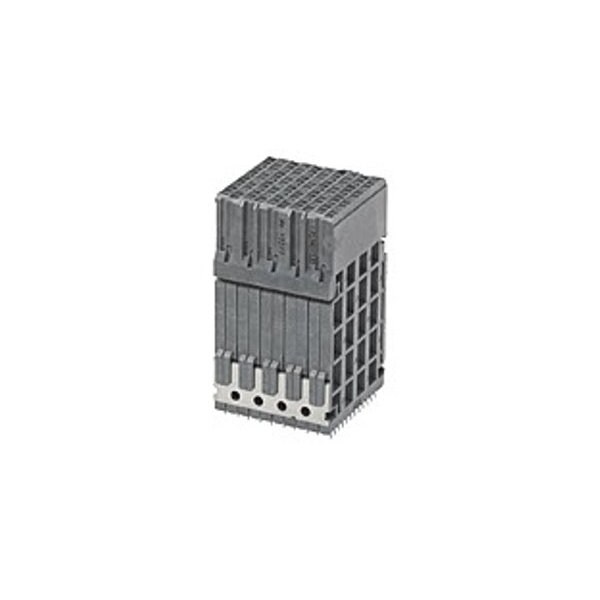

Conector de apilamiento de tarjetas, 120 contactos, 12 filas, hembra, recto, terminal de ajuste por presión.
| Color | Gray |
|---|---|
| Max. Voltage | 30V AC/DC |
| Standards | UL E29179 |
| Material | High Temperature Thermoplastic |
| Terminal Type | Through Hole - Compliant Pin |
| Max. Temp. | 85 deg C |
| Hole Center to Center | 1.35 mm, 1.9 mm |
| Contact Finish | Gold Plated |
| Number of Rows | 12 |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Current Rating | 0.75 A |
| Terminal Finish | Matte Tin Plated |
| Number of Contacts | 120 |
| Package Quantity | 1 |
