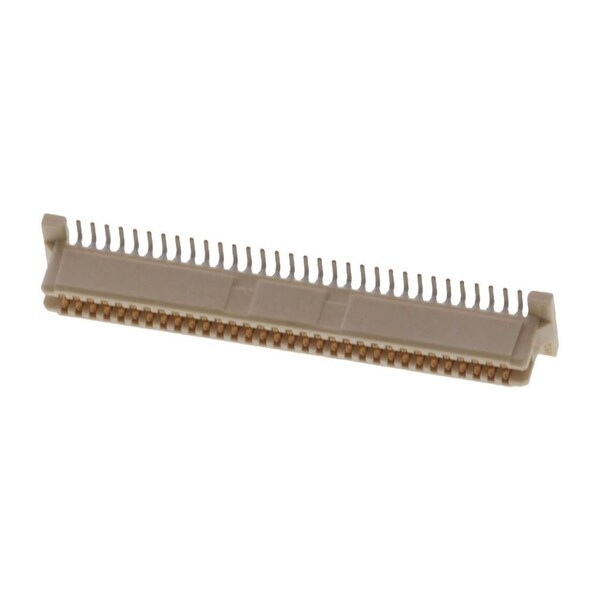

Conector de apilamiento de tarjetas, 64 contactos, 2 filas, hembra, recto, paso de 0.039 pulgadas, superficie.
| Color | Natural |
|---|---|
| Max. Voltage | 100 V |
| Application | Board-to-Board, Signal |
| Series | 71439 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 1 mm |
| Terminal Type | Surface Mount |
| Material | High Temperature Thermoplastic |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Current Rating | 1 A |
| Number of Contacts | 64 |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Contact Plating Thickness | 0.762 µm |
| Material - Metal | Phosphor Bronze |
| Max-Temp | 260 |
| Lock to Mating Part | Yes |
| UL | E29179 |
| Material - Resin | High Temperature Thermoplastic |
| Mated Height | 10 mm, 8 mm, 9 mm |
| Max-Cycle | 3 |
| CSA | LR19980 |
| Pitch - Mating Interface | 1 mm |
| Plating min - Mating | 0.762 um |
| Glow-Wire Capable | No |
| Material - Plating Mating | Gold |
| Temperature Range - Operating | -55° to +85°C |
| Polarized to PCB | No |
| PCB Retention | None |
| Max-Duration | 40 |
| PCB Locator | Yes |
| Orientation | Vertical |
| Material - Plating Termination | Tin |
| PCB Thickness - Recommended | 1.6 mm |
| Current - Maximum per Contact | 1 A |
| Flammability | 94 V to 0 |
| Component Type | PCB Receptacle |
| Product Name | 1.00mm Mezzanine |
| Circuits (Loaded) | 64 |
| Package Quantity | 1 |
